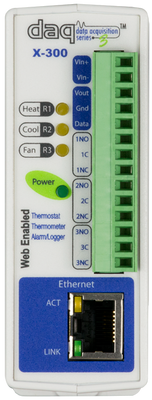

X-300 | Advanced Web-Enabled Temperature Monitoring & Thermostat

The X-300™ is two products in one package:

Temperature Logging

First, the X-300™ is a powerful web-based temperature logging instrument that allows you to monitor and control temperatures via an IP network. Up to 8 temperature sensors can be connected at a time.

Temperatures can be viewed in real-time using a web browser. In addition, the X-300™ has many advanced features including email alerts, relay control, a BASIC interpreter, and much more.

Web-Enabled Thermostat
Second, the X-300™ is a 7-day programmable web-enabled thermostat. Users can adjust and set temperatures for heating and cooling systems and view current indoor and outdoor temperatures from any web browser.
As a web thermostat, it provides an attractive control web page that works great on desktop computers as well as smartphones such as the iPhone® and other mobile digital devices.
Setup is simple; There is no app to download, no subscription to buy, no software required, and no programming necessary for setup or use.

Features:

• Web-browser based - no software required
• Email alerts
• Three, independently controlled 3A relays
• Field updatable
• Built-In real-time clock w/ capacitor backup
• Temperature Logger
• Supports HTTP, TCP, SNMP, Modbus/TCP
• Supports additional data logging and management from web services
• Internal temperature and voltage monitoring for diagnostics
• Wide operating temperature range
• Removable terminal connector for convenient wiring
• Compact, DIN-Rail mountable enclosure
• Measurement Range: -67°F to 257°F (-55°C to +125°C)

Web-Enabled Temperature Logger:

• The temperature logger can receive data from up to 8 temperature sensors
• Supports BASIC scripts for advanced configuration

Web-Enabled Thermostat:

• Attractive thermostat user interface
• Connect up to 3 sensors
• 7 day programming schedule
• Connect to single stage heating/cooling system

 Applications

The X-300 is versatile and has many applications. A few examples are listed below.
The X-300's powerful and flexible design make imagination its only limit.

• Home or Office Thermostat (PDF)
• Car Wash Systems
• Server Rooms
• Environmental Temperature Monitoring
• Refrigeration Systems
• Vacant Living/Working Spaces

Examples

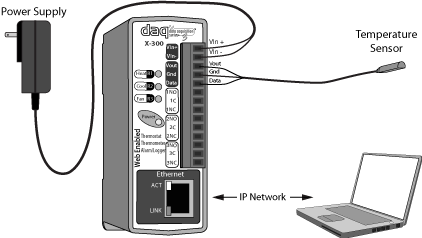

       1. Temp Monitoring/Logging
Standard configuration for monitoring and/or logging temperatures.

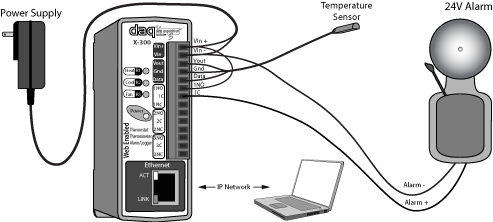

       2. Temp Monitoring with Alarm
Basic configuration for an alarm. When the temperature crosses a specific threshold, the alarm will be turned on or off. The alarm could be an audio device such as a buzzer or bell, an indicator such as a lamp, or a functional device such as a fan or heater.

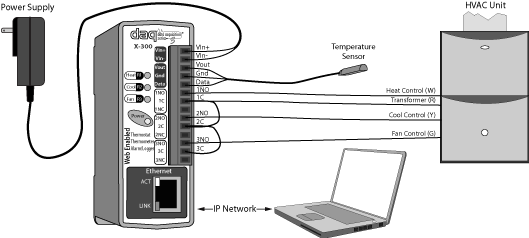

       3. Web Thermostat
Basic connection to a single stage heating/cooling system.

X-300 Part Number:

       1. X-300-I+PS12-A
OUTPUTS: 3 Relays (3A 28VAC, 24VDC)
INPUTS: 8 Temp (One temp sensor included)
POWER SUPPLY: 9-28 VDC (One power supply included)

       2. X-300-I
OUTPUTS: 3 Relays (3A 28VAC, 24VDC)
INPUTS: 8 Temp (One temp sensor included)
POWER SUPPLY: 9-28 VDC

       3. X-300-E
OUTPUTS: 3 Relays (3A 28VAC, 24VDC)
INPUTS: 8 Temp (One temp sensor included)
POWER SUPPLY: 9-28 VDC

Real-Time Clock:

• Manual or NTP(Network Time Protocol) setup
• NTP Sync Period: Once, Daily, Weekly, On Powerup
• Auto Daylight Savings Adjustment
• Battery (capacitor) Power Backup

Electromagnetic Compliance:

• IEC CISPR 22, CISPR 24
• EU EN55024, EN55022
• X-300-I: FCC 47CFR15 (Class B)
• X-300-E: FCC 47CFR15 (Class A)

Product Safety Compliance:

• IEC 61010-1
