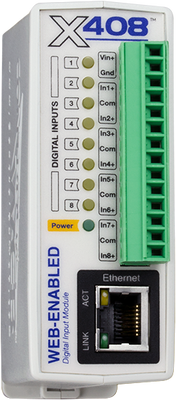

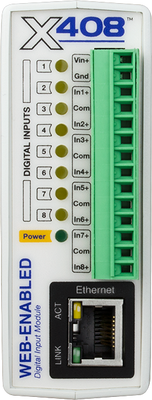

X-408™ | Web-Enabled Digital Input Module

Features:

• Eight optically-isolated digital inputs
• Each input can be configured as:

1. Discrete On/Off
2. Counters
3. Frequency measurements

• Monitor, log, and control 32 remote modules, or up to 100 I/O
• User Permissions: Admin, Manager, User
• Tasks

1. 50 Scheduled
2. 50 Conditional
3. 20 Override Schedules

• Send email alerts based on user-defined conditions (supports encrypted email servers, such as Gmail)
• Real-Time Clock with NTP server synchronization
• Automatic daylight savings and leap year adjustment
• No software required
• Customizable web-based Control Page
• BASIC script support for advanced flexibility
• Configurable logging
• Graphing (logged data)
• HTTPS/TLS encrypted
• Static or DHCP IP address configuration
• Modbus, SNMP, Remote Service, IP Filtering
• Field updatable
• Removable 14-Terminal connector for easy installation
• Rugged DIN-Rail/wall-mountable enclosure

Industrial Digital Input Monitoring:

      1. WEB-ENABLED
Monitor 8 digital inputs using a standard web browser.

      2. FREQUENCY/COUNTERS
Configure an input for discrete, counter, or frequency measurement.

       3. LOGGING/GRAPHING
Log and graph digital input states over time.

       4. I/O MIRRORING
Mirror the state of the inputs' to relays on remote devices.

       5. MODBUS TCP/IP
Read input states from Modbus master devices.

       6. PEER-2-PEER
Share real-time input states with other ControlByWeb devices.

       7. EMAIL/TEXT ALERTS
Customizable email/text alerts based on input states.

       8. INCLUDES 400-SERIES ADVANCED FEATURES
Task Builder, encryption, intuitive user interface, much more.

Applications - Industrial Internet of Things (IIoT)
The X-408 is ideal for applications that require discrete input monitoring over an IP network.

Discrete Input Monitoring
Use the X-408 to detect the state of buttons and switches. Send the state of the inputs to other 400 Series controllers (X-400, X-410, etc.) for real-time control.

       1. Buttons/Switches
Monitor the on/off state of push buttons and switches. Using peer-to-peer (P2P) communication, the module can be logically linked to I/O on remote modules (WebRelay, X-410, etc.) to control a variety of devices like a door locks, or lights.

       2. Water Sensors, Float Switches, etc
Connect water sensors, float switches, etc. Configure the X-408 to send email/text alerts when the sensor is tripped.

       3. Security Sensors
Monitor security sensors such as magnetic door/window sensors, motion sensors, loop detectors, and more. Configure the X-408 to send email/text alerts when sensors are activated during specified times.

       4. Process Monitoring
Use the X-408 to monitor photo-detectors, limit switches, counters, etc. in manufacturing processes.

       5. Flow Measurement
Connect flow sensors to the X-408 and configure its control page to display flow in gpm, lpm, etc., in real time.

The X-408 can be connected to many different types of sensors!

I/O Mirroring
The X-408 can be used in a larger, distributed system. The following illustration shows how the X-408 works in conjunction with other ControlByWeb products for I/O mirroring.

X-408 Part Numbers:

       1. X-408-I:
INPUTS/OUTPUTS:

• Digital: 8 (4-26VDC)

SPECIAL FEATURES:

• Task builder, email daily log file, add 100 I/O on up to 32 Remote I/O Modules

POWER SUPPLY:

• 9-28 VDC

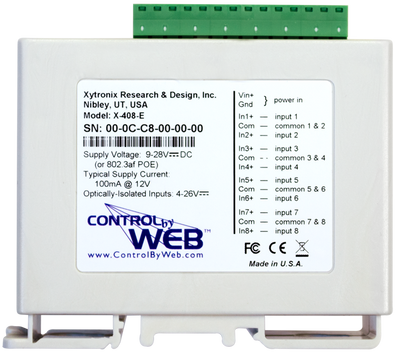

       2. X-408-E:
INPUTS/OUTPUTS:

• Digital: 8 (4-26VDC)

SPECIAL FEATURES:

• Task builder, email daily log file, add 100 I/O on up to 32 Remote I/O Modules

POWER SUPPLY:

• POE and/or 9-28 VDC

Real-Time Clock:

• Manual or NTP(Network Time Protocol) setup
• NTP Sync Period: Once, Daily, Weekly, On Powerup
• Auto Daylight Savings Adjustment
• Battery (capacitor) Power Backup

Electromagnetic Compliance:

• IEC CISPR 22, CISPR 24
• EU EN55024, EN55022
• X-408-I: FCC 47CFR15 (Class B)
• X-408-E: FCC 47CFR15 (Class A)

Product Safety Compliance:

• IEC 61010-1
