Daikin 12,000 BTU Floor Mounted Air Handler; Multi Zone

Availability:
In-Stock

This product requires a compatible outdoor condenser for functionality.
Style: Floor Mounted; BtuH Cooling: 10,200; BtuH Heating: 13,000; Volts: 208/230; Sound Pressure Cooling dBA: 39; Sound Pressure Heating dBA: 39; Liquid Conn.: 1/4"; Suction Fitting: 3/8"; Width: 27-9/16"; Height: 23-5/8"; Depth: 8-1/4"; Wt. Lbs.: 31; Wifi Enabled: N; Nom. Capacity: 12000;

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

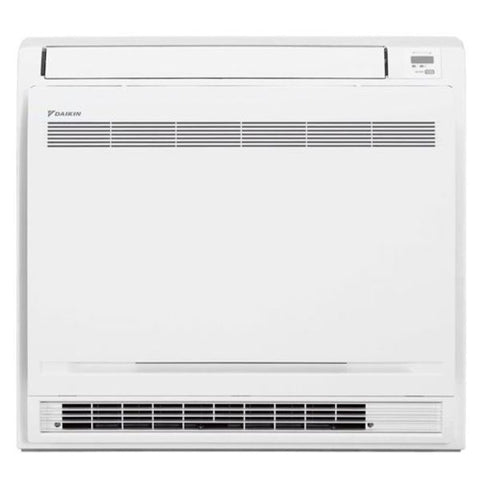

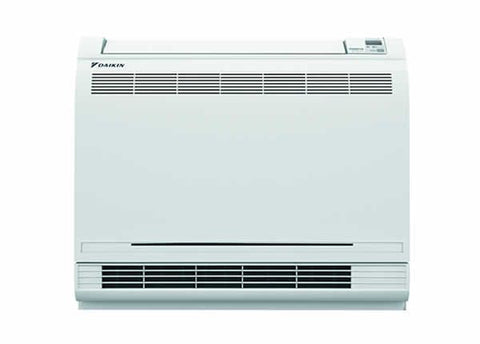

This product requires a compatible outdoor condenser for functionality. Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This is an FVXS12NVJU floor mounted indoor unit for use in building a multi-zone mini split system. Whisper quiet operation means that the unit will never draw attention to itself, and a sleek floor mount design allow the unit to blend into almost any home. With the inclusion of powerful energy saving features, Daikin provides cost-conscious solutions to any home's heating and cooling needs.

  • Washable air filter
  • Program Dry Function
  • Econo Mode
  • Powerful Operation Mode

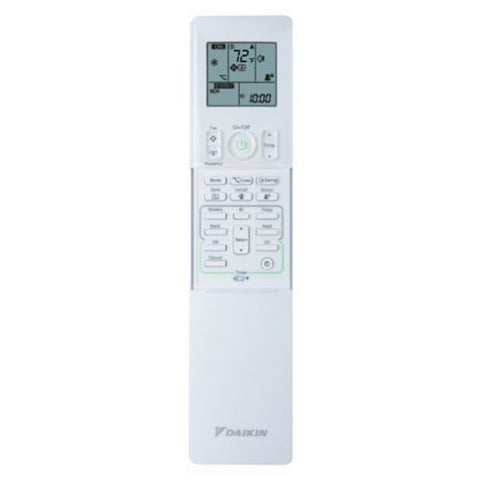

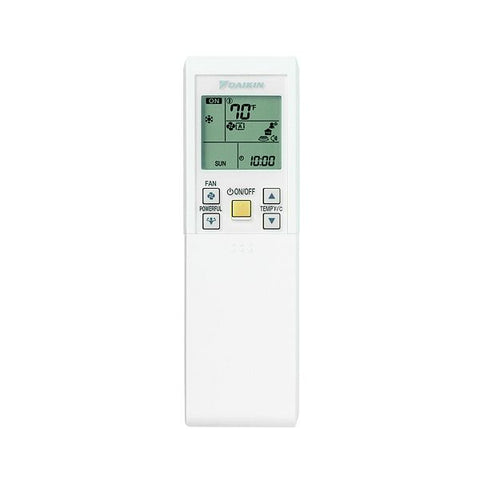

  • Wireless Remote Controller
  • Auto Changeover
  • Auto fan speed control
  • Self Diagnostics with Digital Display
  • Our SKU number(s): Daikin FVXS12NVJU
  • The manufacturer model number(s): Daikin FVXS12NVJU

  This product requires a compatible Daikin outdoor condenser and the following accessories for installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.

  Product Compatability

  • Daikin 2MXS18NMVJU Outdoor Condenser
  • Daikin 2MXL18QMVJU Outdoor Condenser
  • Daikin 3MXS24NMVJU Outdoor Condenser
  • Daikin 3MXL24QMVJU Outdoor Condenser
  • Daikin 4MXS36NMVJU Outdoor Condenser
  • Daikin RMXS48LVJU Outdoor Condenser

SPECIFICATIONS

General Information
TypeFloor Mounted
Product LineMXS
Operating ModeHeating and Cooling
Multi-Zone CompatibleYes
Refrigerant TypeR-410A
Remote ControlWireless
Indoor Unit Size(s) 12
Installation LocationIndoor


Performance
Cooling BTU 12000
Cooling Capacity12000 BTU
Maximum Air Flow332 CFM
Minimum Air Flow159 CFM
Minimum Sound Level24 dB
Maximum Sound Level 39 dB


Dimensions
Gas Connection Size3/8 Inch
Liquid Connection Size1/4 Inch
Condensate Drain Size
13/16 Inches
Product Height23 5/8 Inches
Product Width27 1/2 Inches
Product Depth8 1/4 Inches
Product Weight37 Pounds
Shipping Weight47 Pounds



Certifications
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
