Daikin 9,000 BTU Floor Mounted Air Handler; Multi Zone
This product requires a compatible outdoor condenser for functionality.
Style: Floor Mounted; BtuH Cooling: 9,000; BtuH Heating: 10,100; Volts: 208/230; Sound Pressure Cooling dBA: 38; Sound Pressure Heating dBA: 38; Liquid Conn.: 1/4"; Suction Fitting: 3/8"; Width: 27-9/16"; Height: 23-5/8"; Depth: 8-1/4"; Wt. Lbs.: 31; Wifi Enabled: N; Nom. Capacity: 9000;
PRODUCT INFO

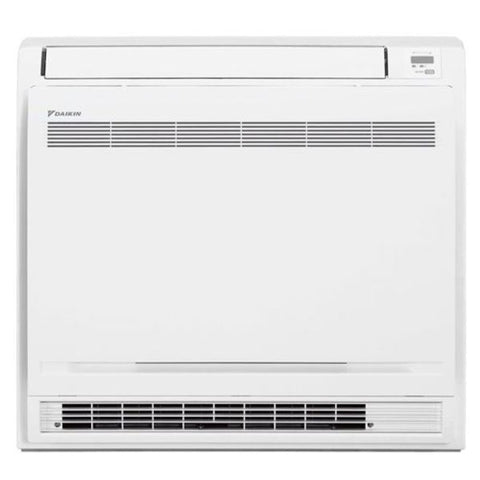

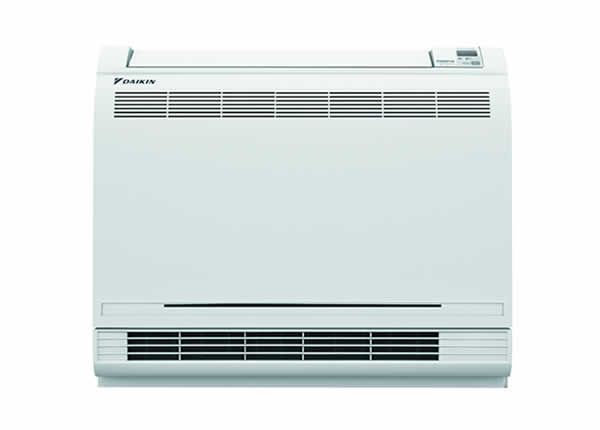

This product requires a compatible outdoor condenser for functionality. Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This is an FVXS09NVJU floor mounted indoor unit for use in building a multi-zone mini split system. Whisper quiet operation means that the unit will never draw attention to itself, and a sleek floor mount design allow the unit to blend into almost any home. With the inclusion of powerful energy saving features, Daikin provides cost-conscious solutions to any home's heating and cooling needs.
- Washable air filter
- Program Dry Function
- Econo Mode
- Powerful Operation Mode

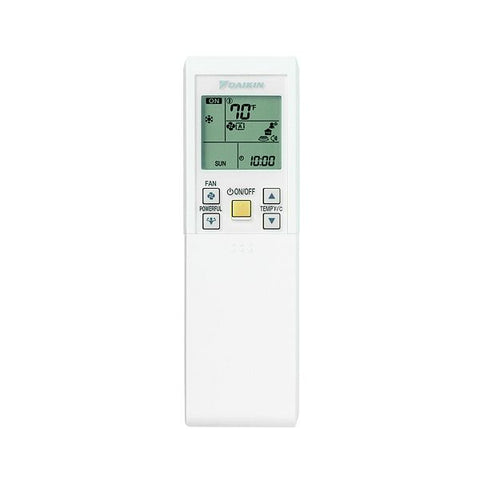

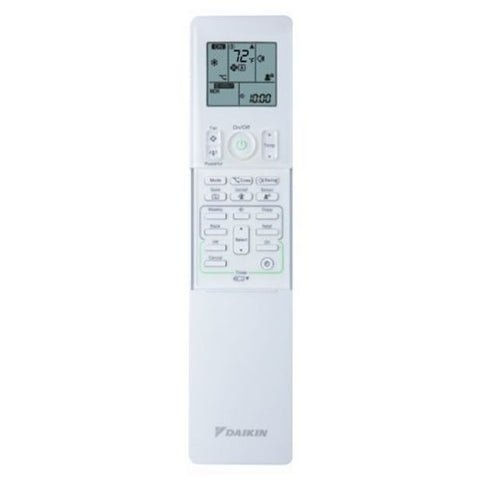

- Wireless Remote Controller
- Auto Changeover
- Auto fan speed control
- Self Diagnostics with Digital Display
- Our SKU number(s): Daikin FVXS09NVJU
- The manufacturer model number(s): Daikin FVXS09NVJU
This product requires a compatible Daikin outdoor condenser and the following accessories for installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Product Compatability
- Daikin 2MXS18NMVJU Outdoor Condenser
- Daikin 2MXL18QMVJU Outdoor Condenser
- Daikin 3MXS24NMVJU Outdoor Condenser
- Daikin 3MXL24QMVJU Outdoor Condenser
- Daikin 4MXS36NMVJU Outdoor Condenser
- Daikin RMXS48LVJU Outdoor Condenser
SPECIFICATIONS
General Information | |
Type | Floor Mounted |
Product Line | MXS |
Operating Mode | Heating and Cooling |
Multi-Zone Compatible | Yes |
Refrigerant Type | R-410A |
Remote Control | Wireless |
Indoor Unit Size(s) | 9 |
Installation Location | Indoor |
Performance | |
Cooling BTU | 9000 |
Cooling Capacity | 9000 BTU |
Maximum Air Flow | 311 CFM |
Minimum Air Flow | 145 CFM |
Minimum Sound Level | 23 dB |
Maximum Sound Level | 38 dB |
Dimensions | |
Gas Connection Size | 3/8 Inch |
Liquid Connection Size | 1/4 Inch |
Condensate Drain Size | 13/16 Inch |
Product Height | 23 5/8 Inches |
Product Width | 27 1/2 Inches |
Product Depth | 8 1/4 Inches |
Product Weight | 37 Pounds |
Shipping Weight | 47 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
ISO Certified | Yes |
