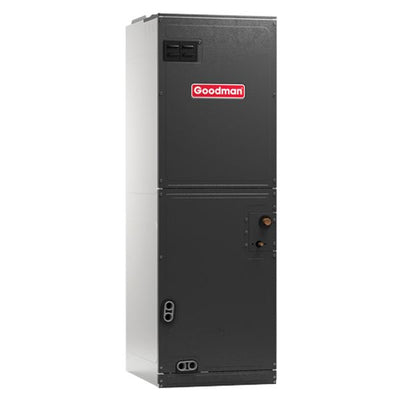

Goodman 4 Ton Air Handler Multi-Position, W/ECM Based Motor
Nom. Tons: 4; Volts: 208/230; Nom. CFM: 1,625; CFM @ 0.5" ESP: 1,555; CFM High @ 0.3 ESP: 1,625; Min. Circuit Amps: 5.6; Max. Fuse Size: 15; Liquid Conn.: 3/8"; Suction Fitting: 7/8"; Width: 21"; Height: 49"; Depth: 21"; Wt. Lbs.: 101; Motor Type: EEM; Air Handler Type: Single Piece; Configuration: Multi-Position
SKU:
ASPT49C14
ID:
HE180-1014
Categories:
PRODUCT INFO
Product Features
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct drive, multi-speed ECM blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-410A refrigerant
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- AHRI certified; ETL listed
- Rigid SmartFrame™ cabinet
- Horizontal or vertical configuration capabilities
- 21” depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
- Field Installed 3 kW – 25 kW electric heater kits available
SPECIFICATIONS
| Nominal Ratings | |
| Cooling (BTU/h) | 48,000 |
| Blower | |
| Diameter | 10 5/8" |
| Width | 8" |
| Coil Connections | |
| Liquid | 3/8" |
| Suction | 7/8" |
| Coil Drain Connect (FPT) | 3/4" |
| Blower Motor | |
| Full Load Amps (FLA) | 5.7 |
| Horsepower (HP) | 3/4 |
| Ship Weight (lbs) | 125 |
