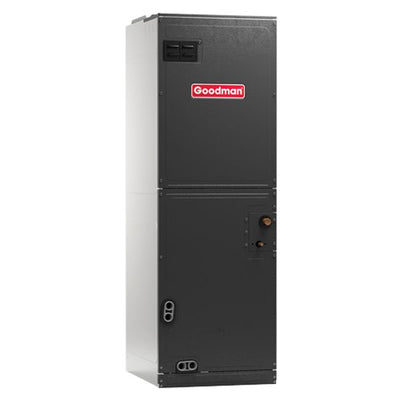

Goodman 4 Ton Air Handler Multi-Position, W/PSC Motor

Availability:
In-Stock
Nom. Tons: 4; Volts: 208/230; Nom. CFM: 1,350; CFM @ 0.5" ESP: 1,810; Min. Circuit Amps: 5; Max. Fuse Size: 15; Liquid Conn.: 3/8"; Suction Fitting: 7/8"; Width: 24.5"; Height: 58"; Depth: 21"; Wt. Lbs.: 147; Motor Type: PSC; Air Handler Type: Single Piece; Configuration: Multi-Position
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Product Features

  • Check flowrator for cooling and heat pump applications
  • Direct drive, multi-speed PSC blower motor
  • All-aluminum evaporator coil
  • Coil mounting track for quick repositioning
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • AHRI certified; ETL listed
  • Rigid SmartFrame™ cabinet
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
  • Field Installed 3 kW – 25 kW electric heater kits available

SPECIFICATIONS

General Information
Product LineARUF
Refrigerant TypeR-410A
Motor TypePSC
Configuration Multi-Position
Installation AvailableNo
UPC663051475878


Performance
Capacity4 Tons
Nominal Cooling Capacity48000 BTU
Maximum Air Flow1810 CFM
Minimum Air Flow1350 CFM



Dimensions
Product Height58 Inches
Product Width24.5 Inches
Product Depth21 Inches
Shipping Weight147 Pounds
Liquid Valve Connection Size3/8 Inch
Suction Valve Connection Size7/8 Inch



Certifications
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
