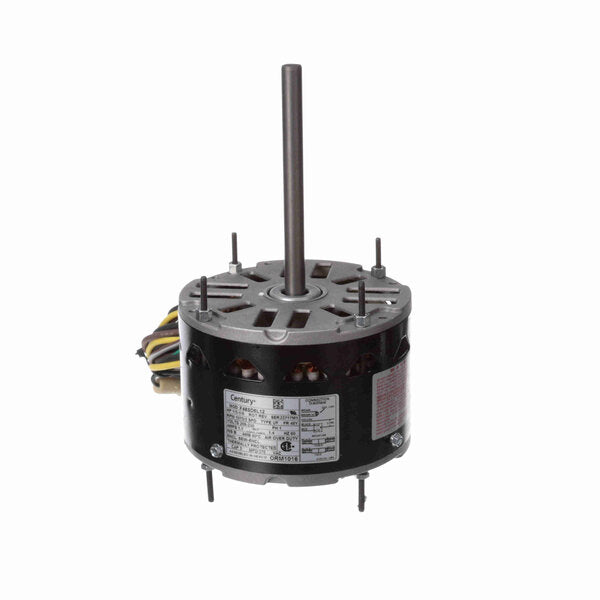

Century OEM Replacement Motor, 1075 RPM, 1/5-1/8 HP, 208-230 V, 48 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Power Leads with Female Spade Terminals, 72" Capacitor Leads with Female Spade Terminals
- Extended Studs Shaft End and Lead End, Mounting Holes in Shell
- HM102-0042 replaces the following brands and item numbers: Rheem-Ruud #20682-01, 20673-01, G-02, 20675-01, Emerson #K55HXMB206560, K136, Franklin #8735660130 and Magnetek #442
$223.65 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674028105 |
| Output HP | 1/5-1/8 Hp |
| Frequency | 60 Hz |
| Current | 1.1 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 3.13 in |
| Shaft Extension | 5.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 10.12 in |
| Shaft Diameter | 0.500 in |
