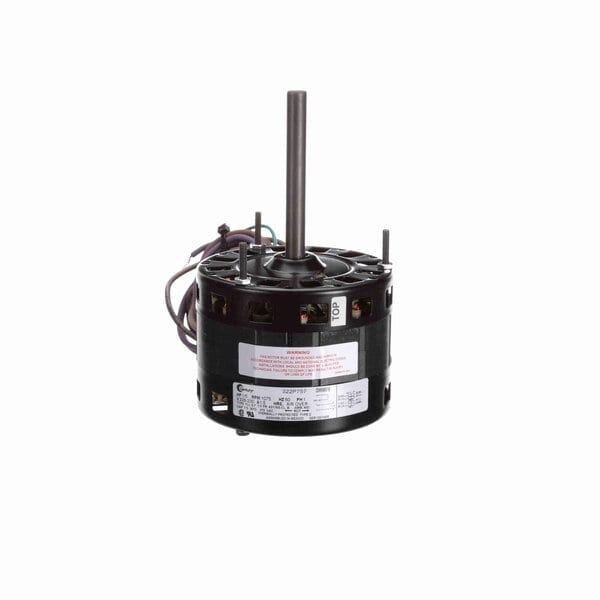

Century OEM Replacement Motor, 1075 RPM, 1/5 HP, 208-230 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 34.5" Leads
- Extended Studs Shaft End
- HM102-0046 replaces the following brands and item numbers: for several Westinghouse "Whispaire" air conditioner motors #319P300, 319P611, 319P982, 322P757, 319P420, 319P934 and 322P629
$295.05 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674028686 |
| Output HP | 1/5 Hp |
| Frequency | 60 Hz |
| Current | 1.5 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 4.3 in |
| Rotation | Reversible |
| Frame Material | Na |
| Overall Length | 8.15 in |
| Shaft Diameter | 0.500 in |
