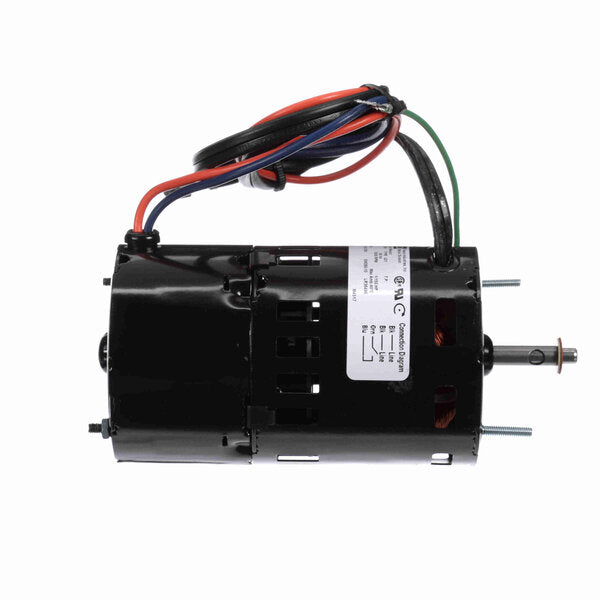

Fasco OEM Replacement Motor, 3000 RPM, 1/150 HP, 115 V, 3.3" Diameter, Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Enclosed Shaft End End-Frame and Opposite Shaft End End-Frame, Open Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft wth Flat
- 22" Power Leads with AMP Terminal, 15" Switch Leads
- Extended Studs Shaft End
- HM102-0063 replaces the following brands and item numbers: Coleman draft booster motors #8865-3149, used for units #8645A, D; 8655 A, D; 8665; 8665A; 8845A; 8855A; and 8865A
$194.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029885 |
| Output HP | 1/150 Hp |
| Frequency | 60 Hz |
| Current | 0.48 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 3000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 2 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.24 in |
| Shaft Extension | 1.5 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 7.42 in |
| Shaft Diameter | 0.250 in |
