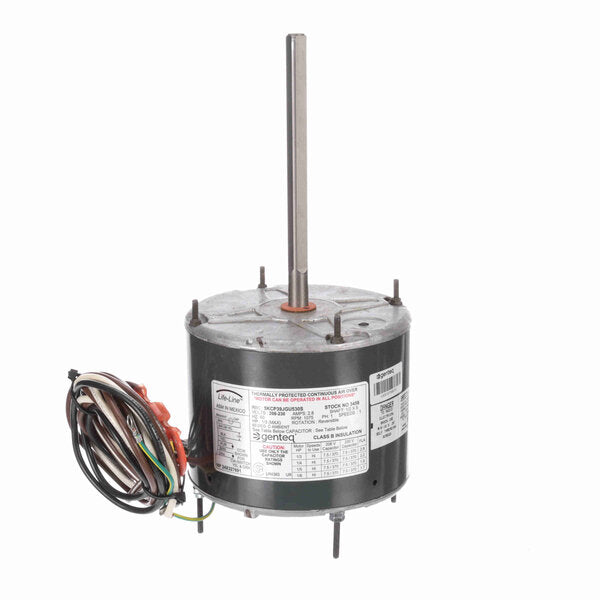

Genteq Condenser Fan Motor, 1075 RPM, 1/3-1/6 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- Life-Line - Condenser Fan - Heat Pump Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 36" Leads
- Belly Band, Extended Clampbolts.
$225.00 USD
PRODUCT INFO
Applications
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with belly band or extended clamp screw mounting
Features
Thru bolt or band mounting. Rheem mounting capability. Water slinger on shaft. Capacitor requirement noted on motor label. Air conditioning or heat pump duty. End shield drain holes with plugs
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585020134 |
| Output HP | 1/3-1/6 Hp |
| Frequency | 60 Hz |
| Current | 2.80 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Ball |
| Frame Length | 3.82 in |
| Shaft Extension | 6.50 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 11.05 in |
| Shaft Diameter | 0.500 in |
