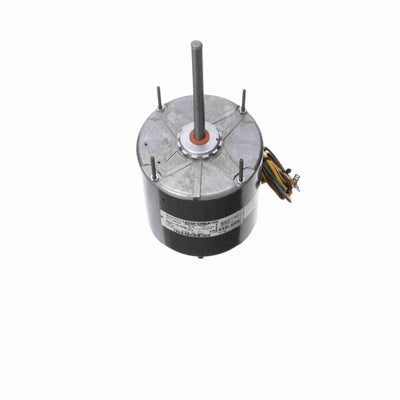

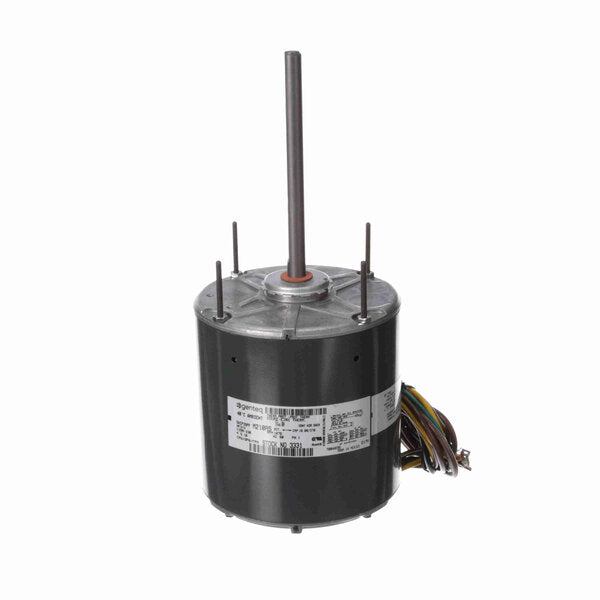

Genteq Condenser Fan Motor, 1075 RPM, 3/4 HP, 208-230 V, 48 Frame, Open Air Over

Availability:
Out-Stock
  • Condenser Fan - Heat Pump Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Semi-Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Shaft Up/Horizontal, Extended Pulley End Clampbolts, Belly Band

$282.00 USD

Sold Out

SKU:
3331
ID:
HM101-1S9-0104

PRODUCT INFO

Applications
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with belly band or extended clamp screw mounting

Features
Automatic thermal protection. For shaft up application. Standard efficiency

SPECIFICATIONS

Nameplate Specifications
UPC815585021728
Output HP3/4 Hp
Frequency60 Hz
Current5.10 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingRound
Opp Drive End BearingSleeve
Shaft TypeDouble Flat
Frame Length5.07 in
Shaft Extension6.00 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.63 in
Shaft Diameter0.500 in
