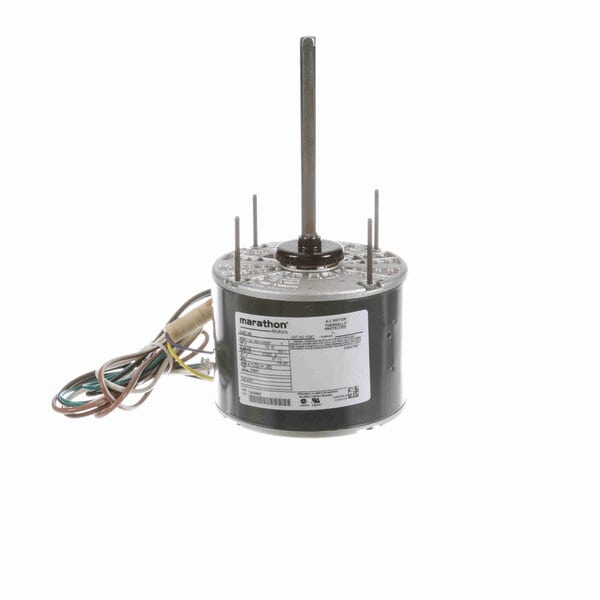

Marathon Condenser Fan Motor, 1075 RPM, 1/4 HP, 208-230 V, 48Z Frame, Open Air Over
- Single speed model
- Weather resistant reversing plug
- 30” long leads
- Shaft with flat
- Shaft slinger
- 1-5/8” Extended thru-bolts on shaft end
- Automatic reset thermal protector
- Lug mount kits and other accessories available (see Accessories section)
- Capacitor not included
$216.00 USD
PRODUCT INFO
Applications
For horizontal or vertical shaft up mounting in heat pump applications, central air conditioning outdoor condenser fans where motor is located directly in the air stream
Features
Automatic thermal protection. Water slinger on shaft end. End bell on shaft end is totally enclosed with water slinger on shaft, end bell opposite shaft end is open. Frame drilled and tapped with two 11/64” diameter holes for capacitor mounting when required. Shaft 6” long with two flats 90° apart. Electrically reversible rotation
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856037459 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 2.0-2.0 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48Z |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round - Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 3.75 in |
| Shaft Extension | 6.06 in |
| Rotation | Selective Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length: | 11.19 in |
| Shaft Diameter | 0.500 in |
