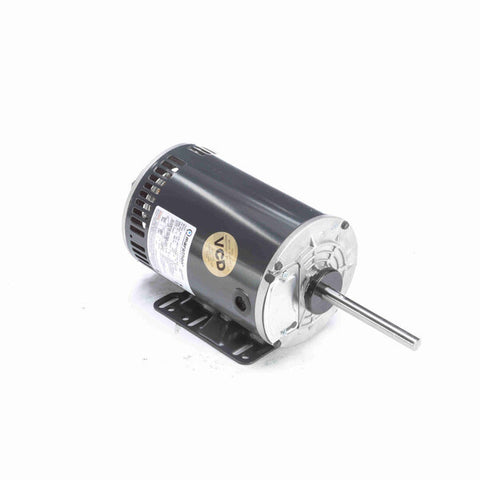

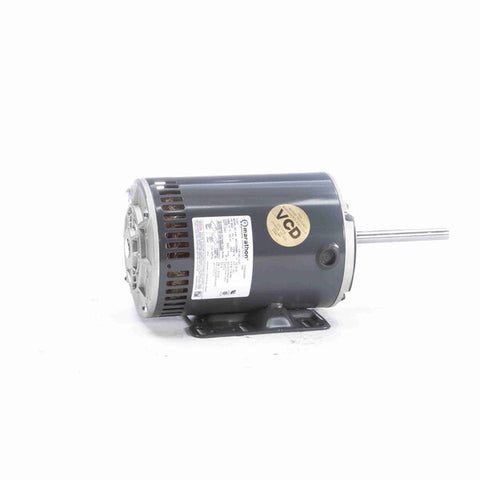

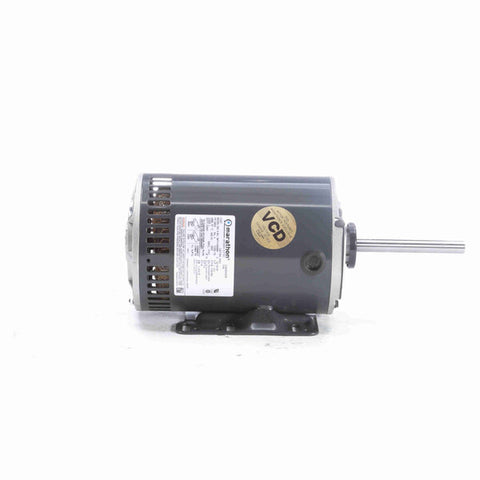

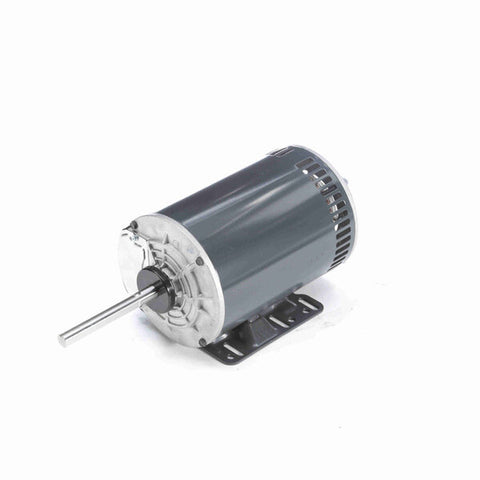

Marathon Condenser Fan Motor, 1140 RPM, 1-1/2 HP, 208-230/460 V, 56HZ Frame, Open Air Over
- 70°C ambient
- Enclosed shaft end bracket, vented frame
- Continuous duty, air over
- Automatic reset thermal protector
- Shaft slinger, Threaded lead exit
- Nameplated 60/50 hertz, 190/380 Volts, at next lower horsepower
- Double sealed ball bearings
- Flat and keyway on shaft
- Patented VCD™ - Voltage Change Device
- 56H, 143T, and 145T combination base with 12 mounting holes
- 3 Phase
$784.00 USD
PRODUCT INFO
Applications
Commercial condenser fans may be installed outdoors. Needs to be mounted within the airflow for proper cooling. Used on Trane, Carrier, Climtrol and York units 5 tons and larger
Features
Automatic reset thermal protector. Enclosed shaft end bracket, vented frame. Continuous duty, air over. 70°C ambient. Doubled sealed ball bearings. VCD™ voltage change device
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856048950 |
| Output HP | 1-1/2 Hp |
| Frequency | 60/50 Hz |
| Current | 5.4-5.4/2.7 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 56HZ |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 200-230/460 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | H |
| Enclosure | Open Air Over |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Squirrel Cage Induction Run |
| Poles | 6 |
| Mounting | Rigid Base |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 8.56 in |
| Shaft Extension | 5.06 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length: | 15.68 in |
| Shaft Diameter | 0.625 in |
