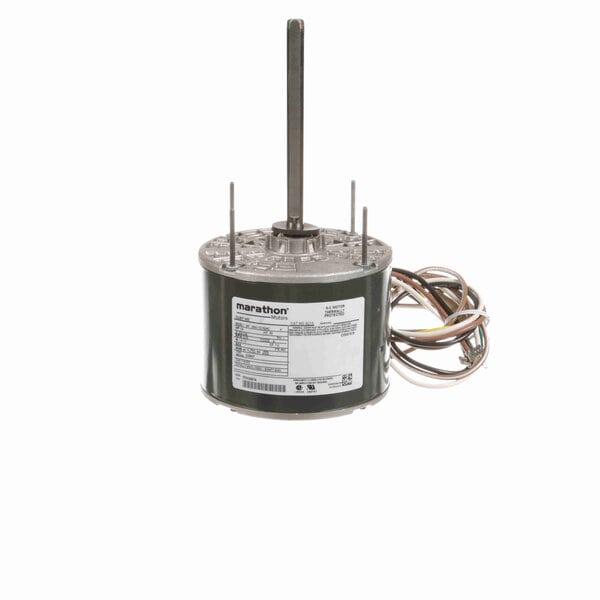

Marathon Condenser Fan Motor, 1075 RPM, 1/4 HP, 208-230 V, 48Z Frame, Open Air Over
- Single speed model
- Weather resistant reversing plug
- 30” long leads
- Shaft with flat
- Shaft slinger
- 1-1/2” Extended thru-bolts on shaft end
- Automatic reset thermal protector
- Lug mount kits and other accessories available (see Accessories section)
- Capacitor not included
- 1" thru-bolts, opposite shaft end
$195.00 USD
PRODUCT INFO
Applications
Designed for standard replacement horizontal or vertical shaft up mounting on central air conditioning condenser units
Features
Automatic thermal protection. Electrically reversible. Shaft end plate enclosed. Energy efficient. Plug reversible. Capacitor not included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856037473 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 1.4-1.2 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48Z |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round - Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 3.75 in |
| Shaft Extension | 6.06 in |
| Rotation | Selective Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length: | 11.18 in |
| Shaft Diameter | 0.500 in |
