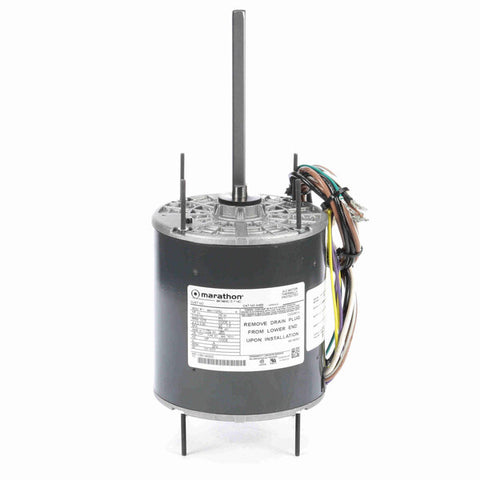

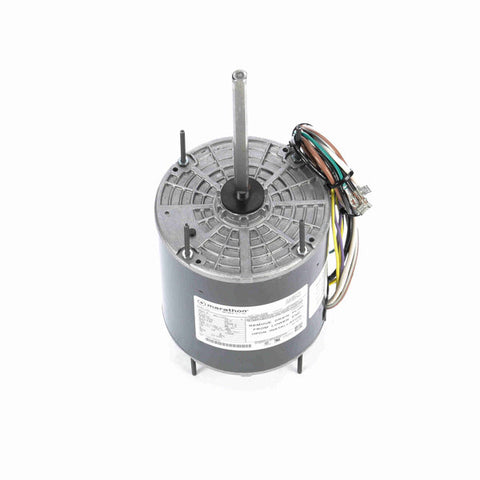

Marathon Condenser Fan Motor, 1075 RPM, 3/4 HP, 208-230 V, 48Y Frame, Totally Enclosed Non Ventilated

Availability:
Out-Stock
  • Frame and end brackets enclosed
  • Single speed model
  • 30” long leads, Shaft slinger
  • Weather resistant reversing plug
  • 1-1/2” Thru-bolts on shaft end, 1” thru-bolts on lead end
  • Automatic reset thermal protector
  • Weep holes with removable plugs on end brackets. Remove bottom plug after installation
  • Lug mount kits and other accessories available (see Accessories section)
  • Capacitor not included, see Accessories section
  • 1-1/2" thru-bolts, opposite shaft end

$308.00 USD

Sold Out

SKU:
X469
ID:
HM101-1S9-0133

PRODUCT INFO

Applications
Direct drive condenser fans for all angle mounting. Needs to be mounted in the airflow of the fan for proper cooling.

Features
Automatic thermal protection. Condensate drain holes. Rotation: reversible with use of quick connectors. Slinger on shaft High breakdown torque. High temperature thermal protector reduces nuisance tripping

SPECIFICATIONS

Nameplate Specifications
UPC722856038005
Output HP3/4 Hp
Frequency60 Hz
Current4.2-3.7 A
Service Factor1
DutyContinuous
Frame48Y
Thermal ProtectionAutomatic Lock Rotor Only
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureTotally Enclosed Non Ventilated
Ambient Temperature40 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingRound - Extended Studs
Opp Drive End BearingBall
Shaft TypeSingle Special Extension
Frame Length5.50 in
Shaft Extension6.06 in
RotationSelective Counterclockwise
Frame MaterialRolled Steel
Overall Length:
12.50 in
Shaft Diameter0.500 in
