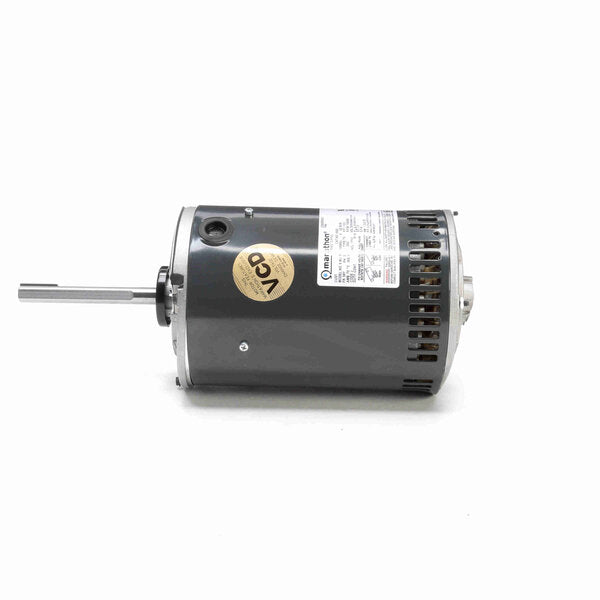

Marathon Condenser Fan Motor, 1140 RPM, 1-1/2 HP, 200-230/460 V, 56Y Frame, Open Air Over

Availability:
In-Stock
  • 70°C ambient
  • Enclosed shaft end bracket, vented frame
  • Automatic reset thermal protector
  • Nameplate 60/50 hertz 190/380 volts, at next lower HP
  • Double sealed ball bearings
  • 5/8” Dia. x 5” long shaft with flat and keyway
  • Threaded lead exit
  • Patented VCD™ - Voltage Change Device
  • 4 Locating screws 90 degrees apart, 3.33” from outer edge of shaft slinger
  • Hubs on both ends will accept resilient base kits, see Accessories section

$674.00 USD

Title
Buy Now
SKU:
X503
ID:
HM101-1S9-0121

PRODUCT INFO

Applications
Commercial condenser fans may be installed outdoors. Used on Trane, Carrier, Climatrol, and York units 5 tons and larger

Features
Automatic reset thermal protection. Horizontal mount only. 70°C ambient. Shaft end bell closed, open opposite end. Rotation: reversible. Belly band mount and will accept resilient base kits. 26" leads. Features unique voltage change device for simplified voltage change. Four locating screws 90° apart, 3-3/8” from outer edge of shaft slinger. 1.0 Service Factor. Ball Bearing. Continuous Duty

SPECIFICATIONS

Nameplate Specifications
UPC722856038432
Output HP1-1/2 Hp
Frequency60/50 Hz
Current5.5-5.4/2.7 A
Service Factor1
DutyContinuous
Frame56Y
Thermal ProtectionAutomatic Lock Rotor Only
ULRecognized
Voltage200-230/460 V
Speed1140 rpm
Phase3
Insulation ClassH
EnclosureOpen Air Over
Ambient Temperature70 °C
CSAY


Technical Specifications

Electrical TypeSquirrel Cage Induction Run
Poles6
MountingRound Belly Band
Opp Drive End BearingBall
Shaft TypeSingle Special Extension
Frame Length8.56 in
Shaft Extension5.06 in
RotationReversible
Frame MaterialRolled Steel
Overall Length:
16.06 in
Shaft Diameter0.625 in
