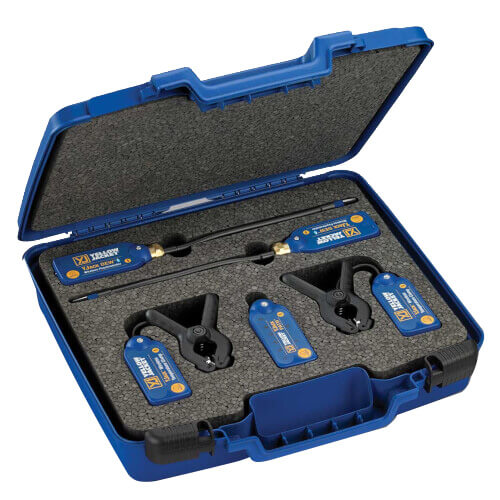

Yellow Jacket 67071 YJACK™ Temperature/Humidity Kit

YJACK™ Temperature Clamps (2)

• Wireless measurements for surface temperature of pipes up to 1.25” diameter
• Temperature clamp provides strong, secure connection to system
• Flexible cable connection for easy access in small and difficult to reach areas
• Rotating mounting magnet for optimal Bluetooth® transmitter placement
• Bluetooth® 4.2 compliant low energy radio
• 400 ft line of sight signal range*
• Compatible with YJACK VIEW™ App and P51-870 TITAN® devices (firmware version v2.0 or later)
• Rapid Response Time: 10 seconds to 90% of differential TYP**
• Temperature Measurement Range: -40°F to 176°F (-40°C to 80°C)
• Temperature Measurement Accuracy: +/-1.0 °C TYP**
• Operating Temperature: -0.4°F to 131°F (-18°C to 55°C)
• Storage Temperature: -40°F to 122°F (-40°C to 50°C)
• Long 1200 hour battery life (2x AAA included)
• IP52 rated
• 2-year warranty

YJACK DEW™ Psychrometers (2)

• Wireless measurement of psychrometric parameters with ease
• Measures percent relative humidity, dry bulb temperature, wet bulb temperature and dew point temperature
• Measure enthalpy change across evaporator coil for system operational efficiency
• Features 8” flexible steel wand for optimal sensor positioning within ventilation ducting
• Optimized sensor housing designed for increased air exchange and better response time
• Features high strength mounting magnet for secure attachment to ventilation systems
• Bluetooth® 4.2 compliant low energy radio
• 400 ft line of sight signal range*
• Compatible with YJACK VIEW™ App and P51-870 TITAN® devices (firmware version v2.0 or later)
• Rapid response time
• Relative Humidity Measurement Range: 0 to 100% RH
• Relative Humidity Accuracy: +/- 2.0 %RH TYP (10 to 90 %RH)**
• Temperature Measurement Range: -40°F to 257°F (-40°C to 125°C)
• Temperature Measurement Accuracy: +/- 0.2 °C TYP (-10 to 80°C)**
• Operating Temperature: -0.4°F to 131°F (-18°C to 55°C)
• Storage Temperature: -40°F to 122°F (-40°C to 50°C)
• Long 1500 hour battery life (2x AAA included)
• IP52 rated
• 2-year warranty

YJACK PATH™ (1)

• Connects and re-broadcasts up to (6) YJACK™ devices and (2) P51-870 TITAN® devices at one time
• Adds additional 400 ft line of sight signal range to all YJACK™ and P51-870 TITAN® devices*
• Amplifies signal strength through difficult to penetrate barriers
• Use to circumvent obstructions to your Bluetooth® signal
• Create perimeter with multiple YJACK PATH™ devices for a network of connected devices
• Utilize multiple YJACK PATH™ devices to drastically increase line of sight range
• Compatible with YJACK DEW™, YJACK™ Temperature Clamp, YJACK™ Temperature Strap, and all P51-870 TITAN® devices (requires firmware version v2.0 or later)
• Compatible with the YJACK VIEW™ App
• Simple to operate, one push button start-up
• Operating Temperature: -0.4°F to 131°F (-18°C to 55°C)
• Storage Temperature: -40°F to 122°F (-40°C to 50°C)
• 75 hour continuous duty battery life (2 x AAA included)
• IP52 rated
• 2-year warranty
