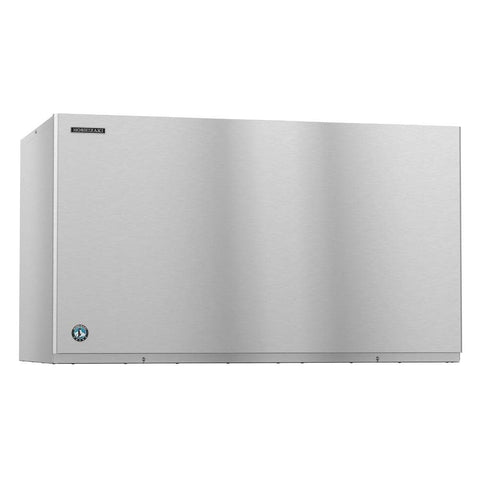

Hoshizaki KM-1601SWJ3 48" Crescent Cuber, Stackable Ice Machine Head, Water Cooled, 1,671 lbs/24h, 208-230v

Availability:
In-Stock
  • Ice Machine,
  • 48"W
  • Water-cooled
  • Self-contained condenser
  • Production capacity up to 1,671 lbs/24 hours at 70°/50° (1660 lb AHRI certified at 90°/70°)

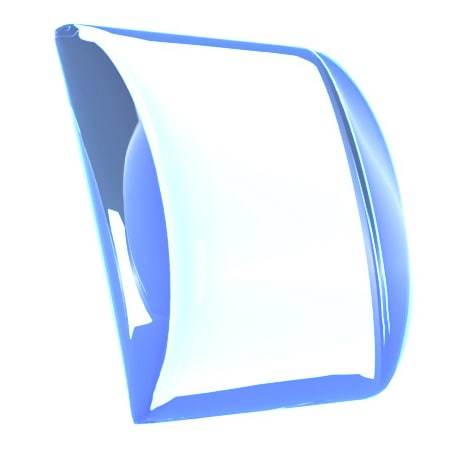

  • Crescent cube style
  • Stainless steel exterior
  • R-404A refrigerant, 208-230v/60/3-ph, 8.8 amps, NSF, UL.

Ice storage bin or dispenser is sold separately!

$10,319.10 USD

Title
Buy Now

PRODUCT INFO

The KM-1601SWJ3 is capable of producing approximately 1671 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable, 3 Phase icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1601SWJ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KM-1601MWH3.

Ice storage bin or dispenser is sold separately!

SPECIFICATIONS


Height48 Inches

Herz27 3/8 Inches

Phase3 Phase

Voltage8.8  Amps

24 Hour Ice Yield1,671 Pounds

Condenser TypeWater Cooled

Ice TypeCrescent Cubes

NSF Listed
Yes

Power Usage
3.32 kWh per 100 lbs.

TypeIce Machines

Water Usage
18.5 Gallons per 100 lbs.
