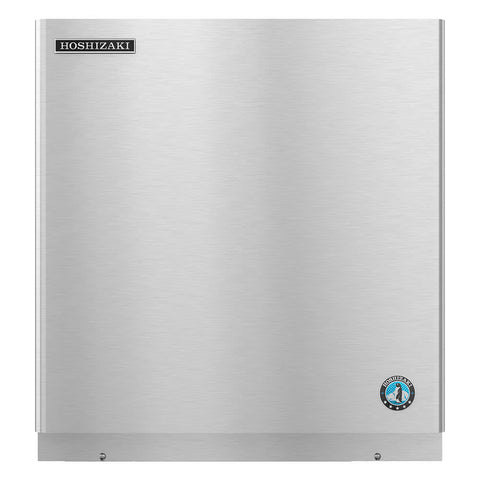

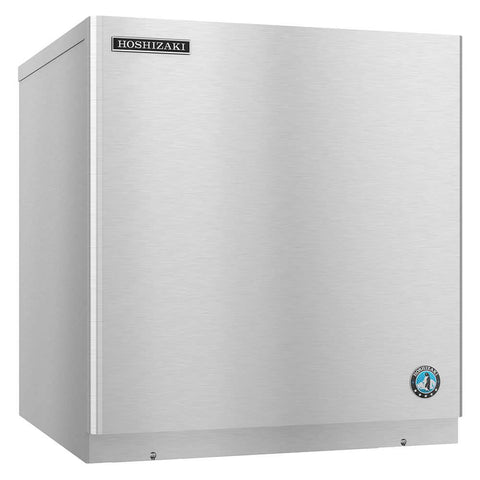

Hoshizaki KMD-410MWH 22" Crescent Cuber, Modular Ice Machine Head, Water Cooled, 440 lbs/24h, 115v
- Ice Machine
- 22"W
- Water-cooled
- Self-contained condenser
- Production capacity up to 440 lb/24 hours at 70°50° (382 lb AHRI certified at 90°/70°) Stainless steel finish
- Crescent cube style
- R-404A refrigerant
- 115v/60/1-ph, 6.5 amps, NSF, cETLus, UL.
Ice storage bin or dispenser is sold separately!
$3,573.90 USD
SKU:
KMD-410MWH
ID:
R300-1027
PRODUCT INFO
The KMD-410MWH is capable of producing approximately 440 lbs of crescent cubed ice. Our efficient stainless steel evaporators create our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Water-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-410MWH requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H. Please consult the Specification Sheet for additional details.
Ice storage bin or dispenser is sold separately!
SPECIFICATIONS
| Width | 22 Inches | ||
| Depth | 24 Inches | ||
| Height | 24 Inches | ||
| Amps | 6.5 Amps | ||
| Hertz | 60 Hertz | ||
| Phase | 1 Phase | ||
| Voltage | 115 Volts | ||
| 24 Hour Ice Yield | 440 Pounds | ||
| Condenser Type | Water Cooled | ||
| Ice Type | Crescent Cubes | ||
| Installation Type | Modular | ||
| NSF Listed | Yes | ||
| Power Usage | 4.3 kWh per 100 lbs. | ||
| Type | Ice Machines | ||
| Water Usage | 23.2 Gallons per 100 lbs. |
