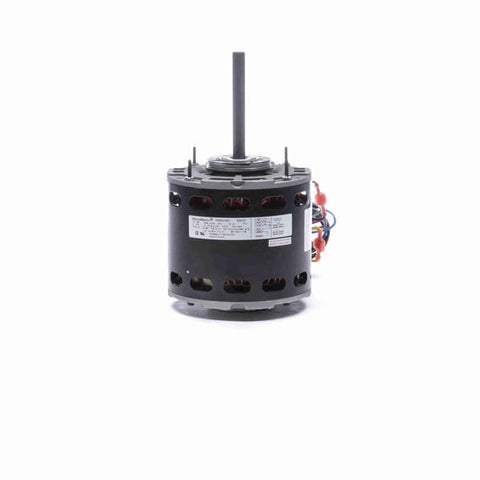

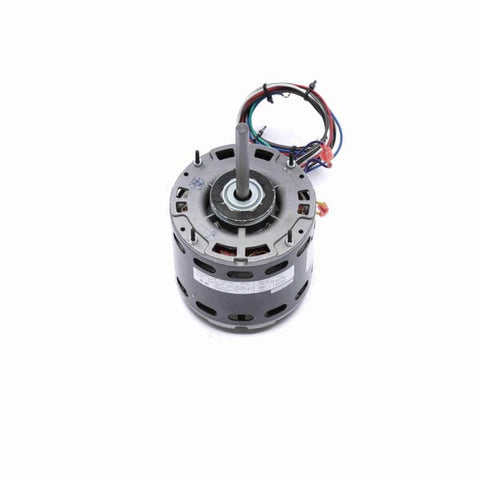

Century Direct Drive Motor, 1075 RPM, 1/2 HP, 115 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • EconoMaster - Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 25" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

$152.25 USD

Title
Buy Now
SKU:
EM3587
ID:
HM106-1S9-0145

SPECIFICATIONS

Nameplate Specifications
UPC786674019509
Output HP1/2 Hp
Frequency60 Hz
Current7.5-4.5-3.0 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage115 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length4.25 in
Shaft Extension4.0 in
RotationReversible
Frame MaterialRolled Steel
Overall Length
9.86 in
Shaft Diameter0.500 in
