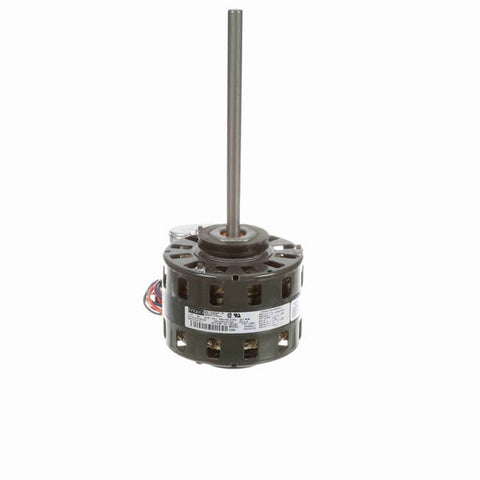

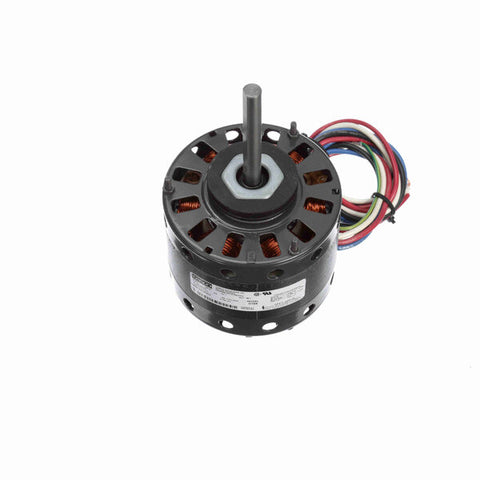

Fasco Direct Drive Motor, 1050 RPM, 1/10-1/15-1/25-1/40 HP, 115 V, 42 Frame, Open Air Over
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 48" Leads with .5" Strip
- Resilient Mounting Ring Shaft End and Lead End
$421.00 USD
PRODUCT INFO
Applications
4-speed, PSC direct drive motor most often drives an 8" wide blower wheel in fan coil units
Features
Rotation: reversible, capacitor included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029410 |
| Output HP | 1/10-1/15-1/25-1/40 Hp |
| Frequency | 60 Hz |
| Current | 2.2/1.4/1.0/0.7 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 8.50 in |
| Rotation | Reversible |
| Frame Material | Na |
| Overall Length | 12.59 in |
| Shaft Diameter | 0.500 in |
