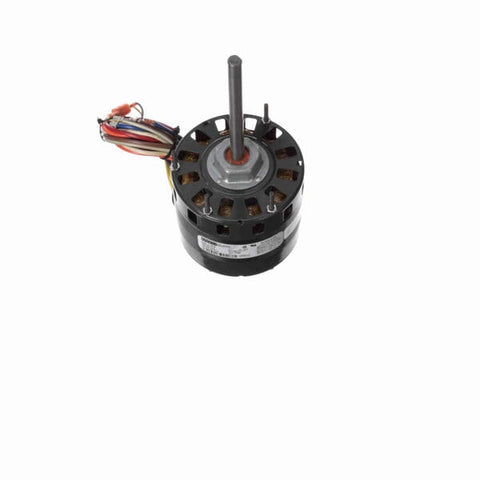

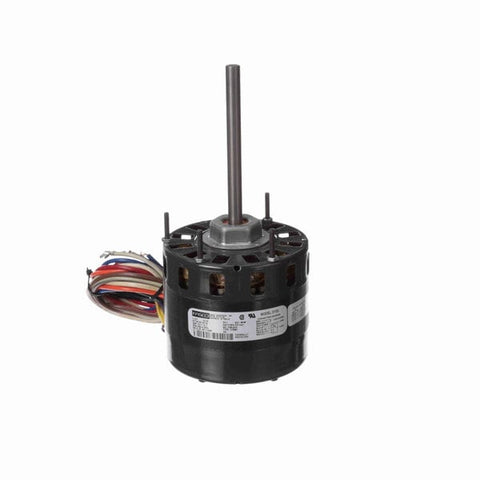

Fasco Direct Drive Motor, 1050 RPM, 1/4-1/5-1/6-1/8 HP, 277 V, 42 Frame, Open Air Over
- Direct Drive Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 30" Leads
- Extended Studs Shaft End, Belly Band
$453.00 USD
PRODUCT INFO
Features
4-speed PSC motor, sleeve bearing |Rotation: electrically reversible. Extended hubs both ends, weighs 11 lbs.. Capacitor not included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028673 |
| Output HP | 1/4-1/5-1/6-1/8 Hp |
| Frequency | 60 Hz |
| Current | 1.6/1.1/0.9/0.7 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 277 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 10.97 in |
| Shaft Extension | 6.00 in |
| Rotation | Reversible |
| Frame Material | Na |
| Shaft Diameter | 0.500 in |
