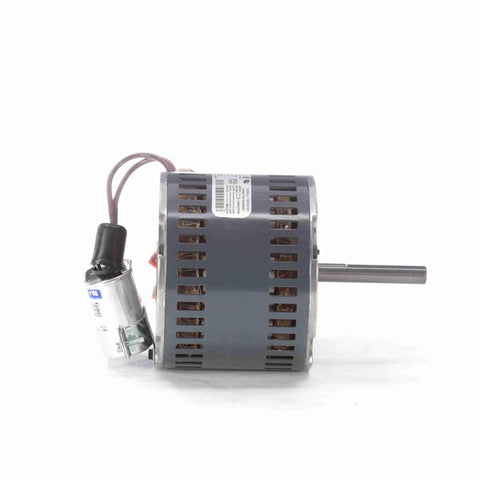

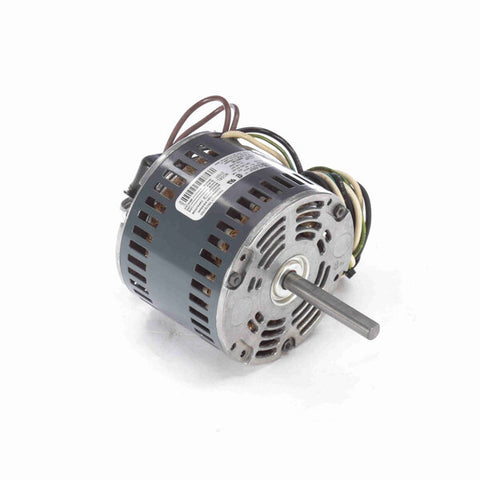

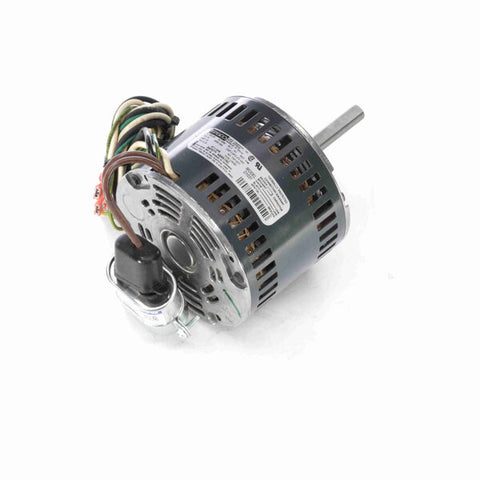

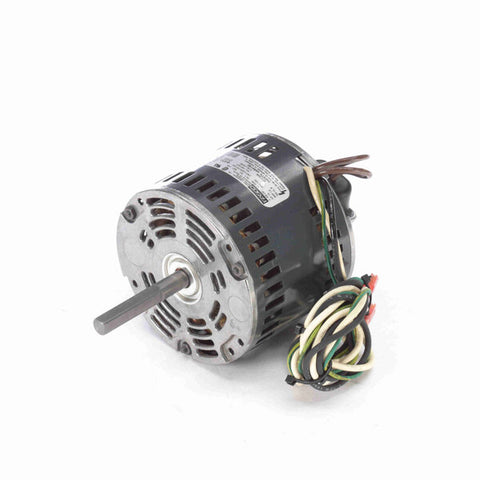

Fasco Direct Drive Motor, 1050 RPM, 1/5 HP, 208-230 V, 42 Frame, Open Air Over

Availability:
Out-Stock
  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 3 Mfd-370 Volts (Supplied with Motor)
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 55" Leads with Flag Terminal
  • Belly Band Mount
  • HM106-0026 replaces the following brands and item numbers: 2009663

$219.00 USD

Sold Out

SKU:
D1031
ID:
HM106-1S9-0126

SPECIFICATIONS

Nameplate Specifications
UPC815585027591
Output HP1/5 Hp
Frequency60 Hz
Current1.8 A
Service Factor1
DutyContinuous
Frame42
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1050 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingRound Belly Band
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
3.63 in
Shaft Extension3 in
RotationCounterclockwise Shaft End
Frame MaterialRolled Steel
Overall Length
7.12 in
Shaft Diameter0.500 in
