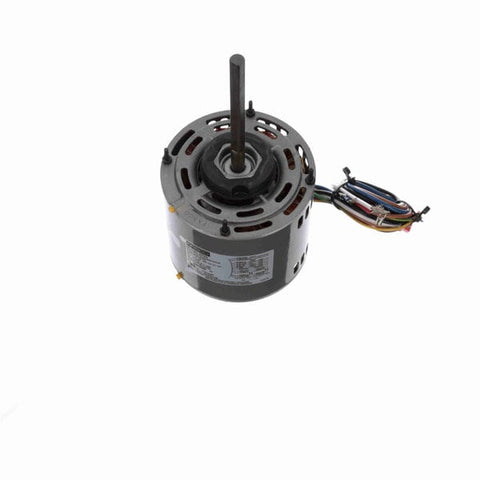

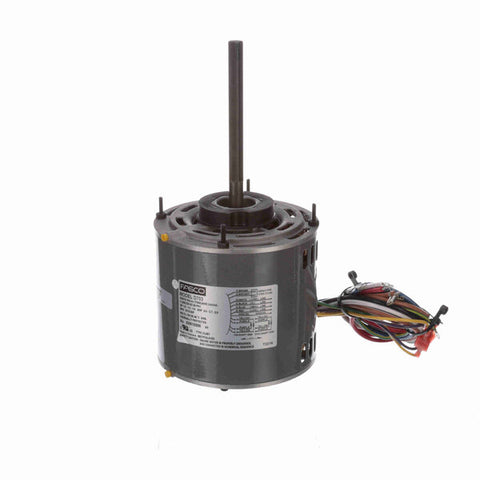

Fasco Direct Drive Motor, 1075 RPM, 1/2-1/3-1/4 HP, 208/230 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • Direct Drive Fan and Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Open Shaft End and Lead End, Shell Half Vented, Air Over
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band
  • HM106-0094 replaces the following brands and item numbers: Ideal replacements for blowers in direct drive furnaces, air conditioners and exhaust fans

$207.00 USD

Title
Buy Now
SKU:
D703
ID:
HM106-1S9-0094

PRODUCT INFO

Applications
Ideal replacements for blowers in direct drive furnaces, air conditioners and exhaust fans

Features
Automatic thermal protection. Extended tie rods shaft end. Mounting hubs both ends. Capacitor not included

SPECIFICATIONS

Nameplate Specifications
UPC818508021218
Output HP1/2-1/3-1/4 Hp
Frequency60 Hz
Current4.0-2.7-2.0 A
Service Factor1
DutyContinuous
Frame48
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeDouble Flat
Frame Length
5.16 in
Shaft Extension5.94 in
RotationReversible
Frame MaterialRolled Steel
Shaft Diameter0.500 in
