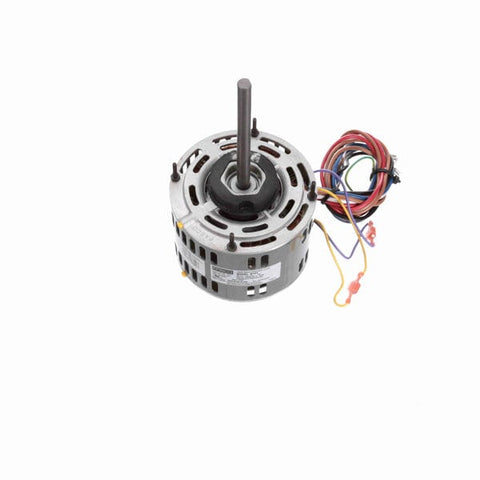

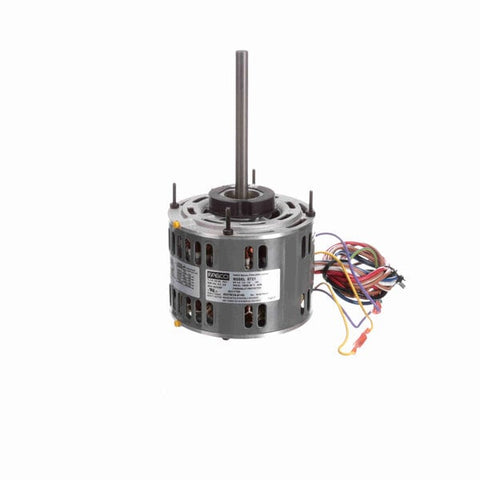

Fasco Direct Drive Motor, 1075 RPM, 1/4-1/5-1/6 HP, 115 V, 48 Frame, Open Air Over
- Direct Drive Fan and Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band
- HM106-0098 replaces the following brands and item numbers: Ideal replacements for blowers in direct drive furnaces, air conditioners and exhaust fans
$183.00 USD
PRODUCT INFO
Applications
Ideal replacements for blowers in direct drive furnaces, air conditioners and exhaust fans
Features
Automatic thermal protection. Extended tie rods shaft end |Mounting hubs both ends. Capacitor not included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508021232 |
| Output HP | 1/4-1/5-1/6 Hp |
| Frequency | 60 Hz |
| Current | 4.8-3.3-2.6 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 4.21 in |
| Shaft Extension | 5.94 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Shaft Diameter | 0.500 in |
