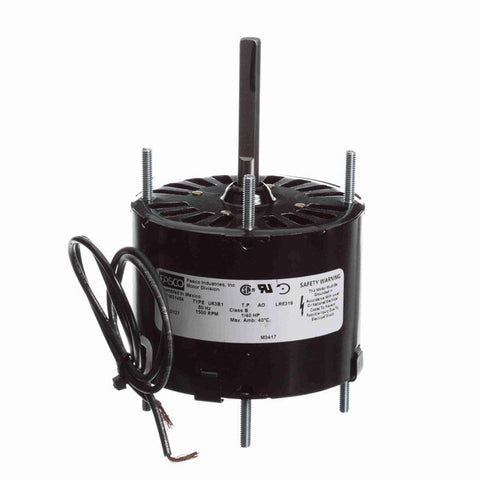

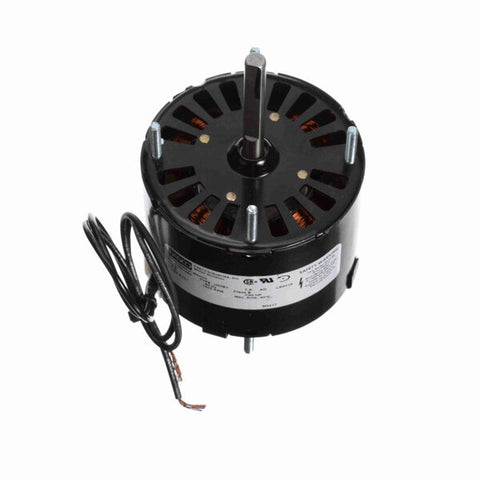

Fasco Direct Drive Motor, 1500 RPM, 1/40 HP, 115 V, 3.3" Diameter, Open Air Over

Availability:
In-Stock
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End, Belly Band Mount

$109.00 USD

Title
Buy Now
SKU:
D127
ID:
HM106-1S9-0095

PRODUCT INFO

Applications
Electric wall and ceiling heaters, gas and oil heaters, range hood vents, fans, blowers, etc.

Features
Open ventilated enclosures, to be located in the airstream, thermally protected. Studs: four on 2.84" centers, both ends of motor

SPECIFICATIONS

Nameplate Specifications
UPC815585028482
Output HP1/40 Hp
Frequency60 Hz
Current1.00 A
Service Factor1
DutyAir Over
Frame3.3
Thermal ProtectionThermally Protected
ULRecognized
Voltage115 V
Speed1500 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles4
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
2.24 in
Shaft Extension2.30 in
RotationCounterclockwise Shaft End
Frame MaterialSteel
Overall Length
5.08 in
Shaft Diameter0.500 in
