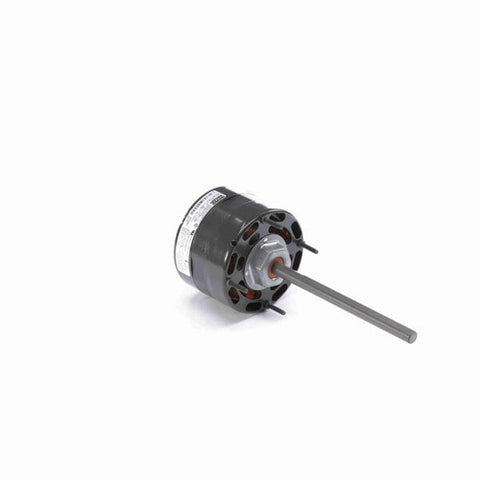

Fasco Open Air Over Direct Drive Motor Front View

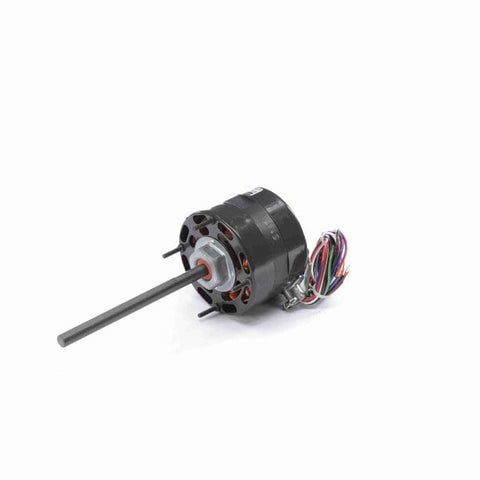

Fasco Open Air Over Direct Drive Motor Front View

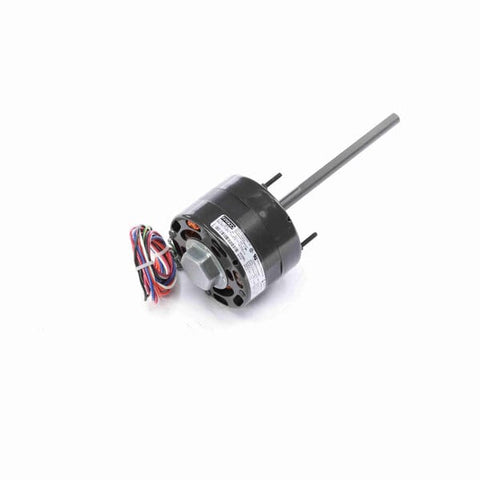

Fasco Open Air Over Direct Drive Motor Top View

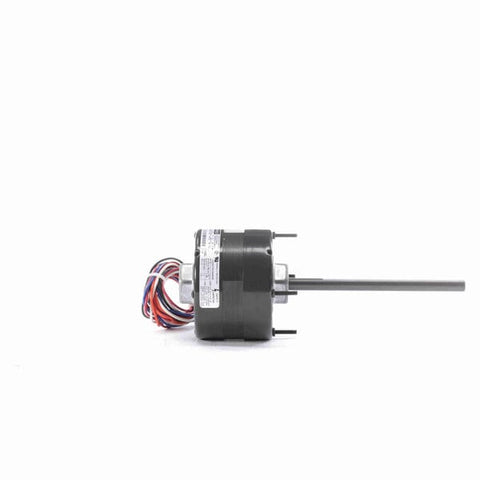

Fasco Open Air Over Direct Drive Motor Side View

Fasco Open Air Over Direct Drive Motor Side View

Fasco Direct Drive Motor, 1550 RPM, 1/15-1/25-1/30-1/40 HP, 115 V, 4.4" Diameter, Open Air Over

Availability:

Out-Stock

Fan Coil - Air-Conditioning - Heating Unit Motor
4.4" Diameter
Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
Sleeve Bearing
1/2" Diameter Shaft with Flat
31" Leads
Extended Studs Shaft End

$318.00 USD

Sold Out

Add to wishlist

SKU:

D117

ID:

HM106-1S9-0129

Categories:

Direct Drive Motors / HVAC / HVAC Motors

SPECIFICATIONS

Nameplate Specifications
UPC	818508022291
Output HP	1/15-1/25-1/30-1/40 Hp
Frequency	60 Hz
Current	2.5-1.5-1.2-1.0 A
Service Factor	1
Duty	Air Over
Frame	4.4
Thermal Protection	Thermally Protected
UL	Recognized
Voltage	115 V
Speed	1550 rpm
Phase	1
Insulation Class	A
Enclosure	Open Air Over
Ambient Temperature	40 °C
CSA	Y

Technical Specifications
Electrical Type	Shaded Pole
Poles	4
Mounting	Extended Studs
Opp Drive End Bearing	Sleeve
Shaft Type	Flat
Shaft Extension	7.5 in
Rotation	Counterclockwise Shaft End
Frame Material	Na
Overall Length	11.29 in
Shaft Diameter	0.500 in
