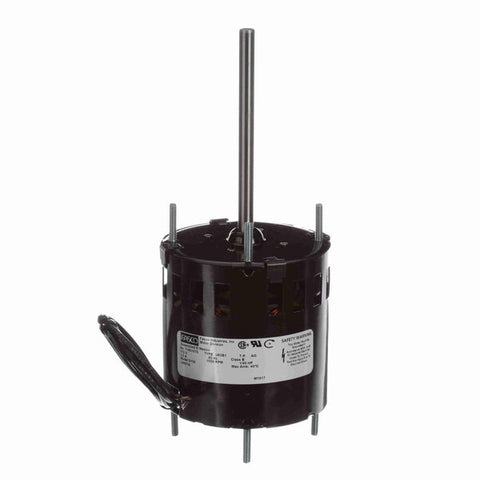

![Fasco Open Air Over Direct Drive Motor Front View](http://supplyshop.com/cdn/shop/products/Fasco-Direct-Drive-Motor-48_1024x1024.jpg?v=1610970562)

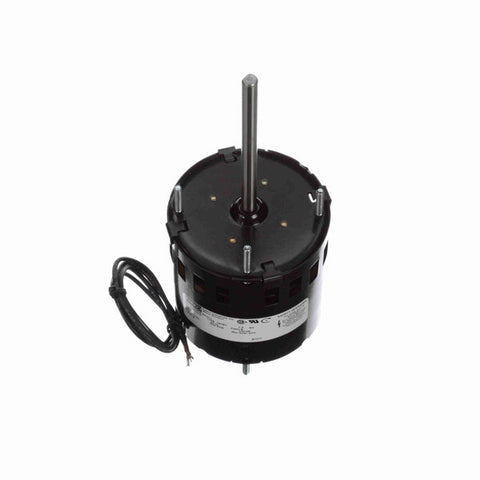

Fasco Direct Drive Motor, 1550 RPM, 1/40 HP, 115 V, 3.3" Diameter, Semi Enclosed
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Enclosed Shaft End End-Frame, Open Opposite Shaft End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End
$176.00 USD
PRODUCT INFO
Applications
For use on fans, blowers and small pumps where motor is isolated from air stream
Features
Continuous duty. Studs: four on 2.84" centers, #8-32 thread. Sleeve bearing, thermal overload protection. Open construction
SPECIFICATIONS
Nameplate Specifications | |
UPC | 815585028512 |
Output HP | 1/40 Hp |
Frequency | 60 Hz |
Current | 1.00 A |
Service Factor | 1 |
Duty | Air Over |
Frame | 3.3 |
Thermal Protection | Thermally Protected |
UL | Recognized |
Voltage | 115 V |
Speed | 1550 rpm |
Phase | 1 |
Insulation Class | B |
Enclosure | Semi Enclosed |
Ambient Temperature | 40 °C |
CSA | Y |
Technical Specifications | |
Electrical Type | Shaded Pole |
Poles | 4 |
Mounting | Extended Studs |
Opp Drive End Bearing | Sleeve |
Shaft Type | Flat |
Frame Length | 3.13 in |
Shaft Extension | 4.10 in |
Rotation | Clockwise Shaft End |
Frame Material | Steel |
Overall Length | 7.78 in |
Shaft Diameter | 0.313 in |
