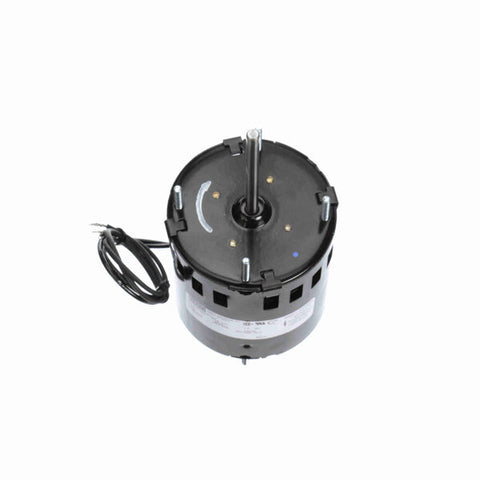

Fasco Direct Drive Motor, 3000 RPM, 1/30 HP, 115 V, 3.3" Diameter, Semi Enclosed
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Enclosed Shaft End End-Frame, Open Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End
$150.00 USD
PRODUCT INFO
Applications
For use on fans, blowers and small pumps where motor is isolated from air stream
Features
Continuous duty. Studs: four on 2.84" centers, #8-32 thread. Sleeve bearing, thermal overload protection. Open construction
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028987 |
| Output HP | 1/30 Hp |
| Frequency | 60 Hz |
| Current | 1.1 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 3000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 2 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.40 in |
| Shaft Extension | 3.00 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 6.95 in |
| Shaft Diameter | 0.250 in |
