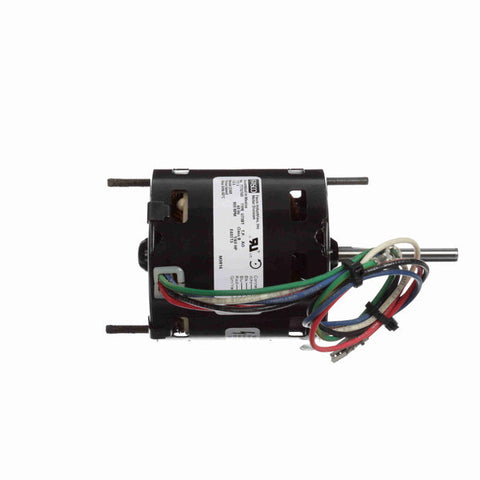

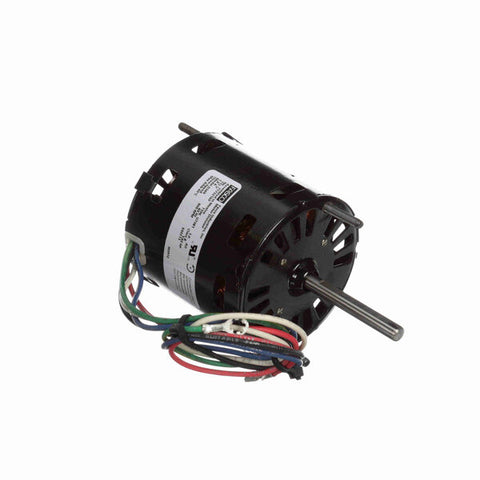

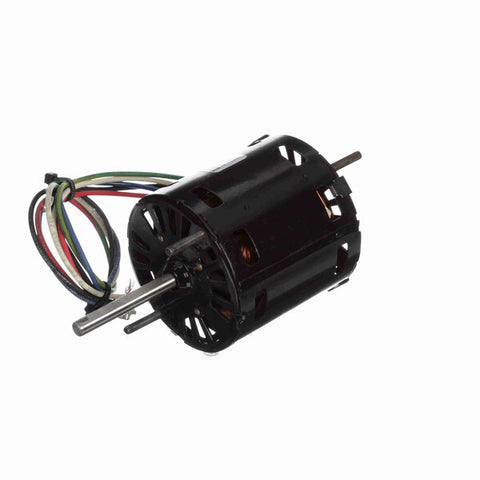

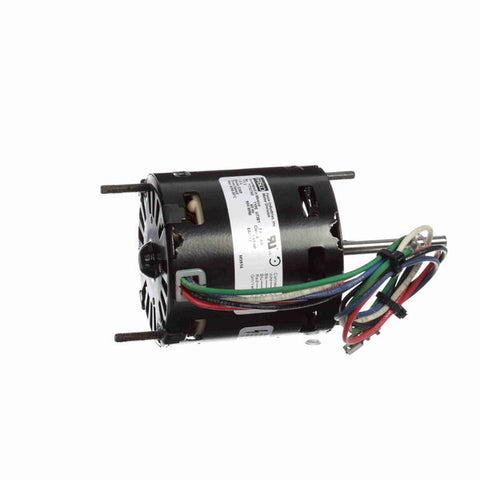

Fasco Direct Drive Motor, 900 RPM, 1/60 HP, 115 V, 3.3" Diameter, Open Air Over
- Fan and Blower Duty Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 15" Leads
- Exntend Studs Shaft End and Opposite Shaft End
$265.00 USD
PRODUCT INFO
Applications
Fans, blowers, office equipment, portable heaters, electric heaters, kitchen and bath ventilators
Features
Short body lengths makes them adaptable to limited space use. Flatted shaft, thermally protected, 60 Hz
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029779 |
| Output HP | 1/60 Hp |
| Frequency | 60 Hz |
| Current | 1.80 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 900 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 8 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.13 in |
| Shaft Extension | 2.5 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 5.94 in |
| Shaft Diameter | 0.313 in |
