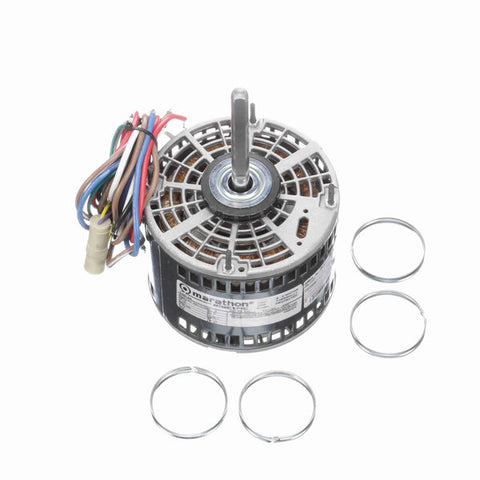

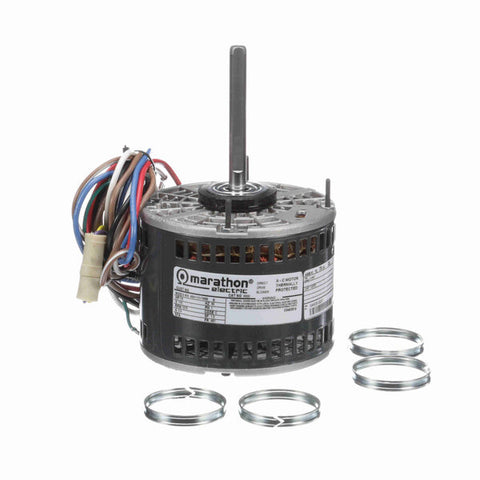

Marathon Direct Drive Motor, 1075 RPM, 1/4 HP, 115 V, 48Y Frame, Open Air Over
- Open frame and brackets
- Multi-speed model
- Grommeted lead exit, Weather resistant reversing plug
- 2-1/4” resilient ring mounting (base not included, see Accessories section)
- 2 1/2” adapter rings supplied, shipped loose in box
- 3/4" thru-bolts, shaft end, 30” long leads
- Automatic reset thermal protector
- Capacitor not included, see Accessories section
- HM106-0035 replaces the following brands and item numbers: Designed as replacements for direct drive furnace blower motors, air conditioners, exhaust fans and other applications
$181.00 USD
PRODUCT INFO
Applications
Designed as replacements for direct drive furnace blower motors, air conditioners, exhaust fans and other applications
Features
Automatic thermal protection. Reversible rotation. Horizontal mount. 2-1/4" resilient rings. 26" long leads with 1/4" straight terminals. 1/2" x 4" long flatted shaft with flat 3-1/2" long. 3/4" long studs on 5.12" bolt circle, #10-32 thread on shaft end
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856038524 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 3.4 A |
| Service Factor | 1 |
| Duty | Continous |
| Frame | 48Y |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Ring - Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 3.75 in |
| Shaft Extension | 4.06 in |
| Rotation | Selective Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 9.25 in |
| Shaft Diameter | 0.500 in |
