Daikin 18 000 BTU Wall Mounted Air Handler Single Zone Heat Pump 1 - FTX18NMVJU
Overview

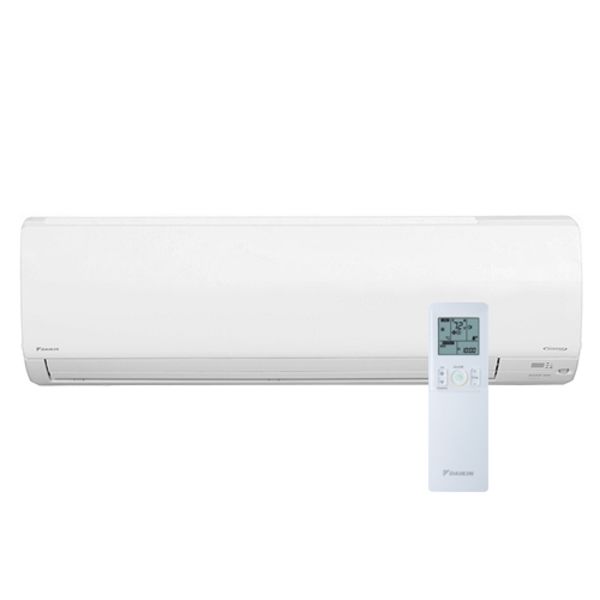

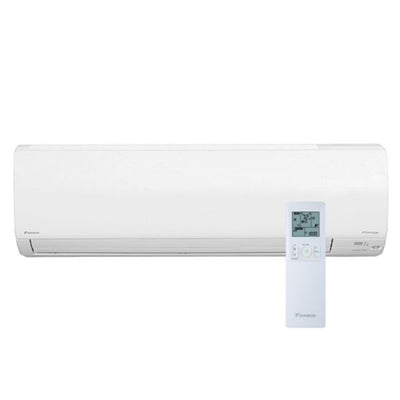

The Daikin 18 000 BTU Wall Mounted Air Handler Single Zone Heat Pump 1 is a air handler from Daikin. This listing is identified by model FTX18NMVJU. Review the product page link for full compatibility and application details.
Quick Facts
- Brand: Daikin
- Model / SKU: FTX18NMVJU
- Product Type: Air Handler
- Product Page: https://supplyshop.com/products/daikin-18-000-btu-wall-mounted-air-handler-single-zone-heat-pump-1
$426.15 USD
SKU:
FTX18NMVJU
ID:
HE103-2065
PRODUCT INFO
- Inverter variable speed compressor
- Automatic operation for year round comfort
- Vertical auto swing air movement
- Humidity control
- Auto fan speed
- Remote controller with backlit display
- 24 hour on / off timer
- Auto restart after power failure
- Self diagnosis with digital display
- 208/230V
This product requires a compatible Daikin outdoor condenser and the following accessories for installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
SPECIFICATIONS
| General Information | |
| Type | Wall Mounted |
| Product Line | 19-Series |
| Operating Mode | Heating and Cooling |
| Multi-Zone Compatible | No |
| Refrigerant Type | R-410A |
| Remote Control | Wireless |
| Indoor Unit Size(s) | 18 |
| Installation Location | Indoor |
| Performance | |
| Cooling BTU | 18000 |
| Cooling Capacity | 18000 BTU |
| Moisture Removal | 1 Pints/Hour |
| Maximum Air Flow | 448 CFM |
| Minimum Air Flow | 403 CFM |
| Minimum Sound Level | 33 dB |
| Maximum Sound Level | 49 dB |
| Dimensions | |
| Gas Connection Size | 1/2 Inch |
| Liquid Connection Size | 1/4 Inch |
| Condensate Drain Size | 5/8 Inch |
| Product Height | 28-5/16 Inches |
| Product Width | 34-1/4 Inches |
| Product Depth | 12-5/8 Inches |
| Product Weight | 97 Pounds |
| Certifications | |
| AHRI Certified | Yes |
| ETL Listed | Yes |
| ISO Certified | Yes |
