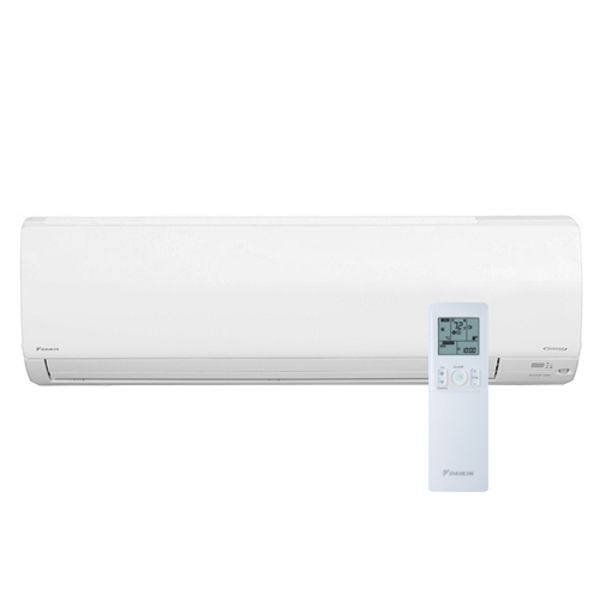

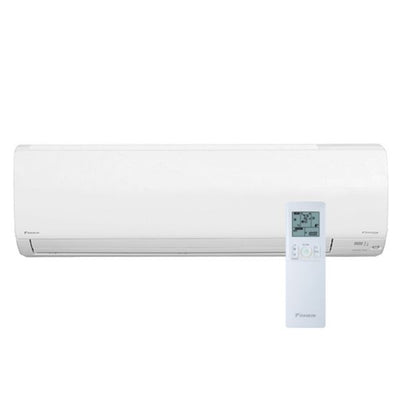

Daikin 24 000 BTU Wall Mounted Air Handler Single Zone Heat Pump - FTX24NMVJU
Overview
The Daikin 24 000 BTU Wall Mounted Air Handler Single Zone Heat Pump is a air handler from Daikin. This listing is identified by model FTX24NMVJU. Review the product page link for full compatibility and application details.
Quick Facts
- Brand: Daikin
- Model / SKU: FTX24NMVJU
- Product Type: Air Handler
- Product Page: https://supplyshop.com/products/daikin-24-000-btu-wall-mounted-air-handler-single-zone-heat-pump
$481.00 USD
SKU:
FTX24NMVJU
ID:
HE103-2066
PRODUCT INFO
- Inverter variable speed compressor
- Automatic operation for year round comfort
- Vertical auto swing air movement
- Humidity control
- Auto fan speed
- Remote controller with backlit display
- 24 hour on / off timer
- Auto restart after power failure
- Self diagnosis with digital display
- 208/230V
This product requires a compatible Daikin outdoor condenser and the following accessories for installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
SPECIFICATIONS
| General Information | |
| Type | Wall Mounted |
| Product Line | 19-Series |
| Operating Mode | Heating and Cooling |
| Multi-Zone Compatible | No |
| Refrigerant Type | R-410A |
| Remote Control | Wireless |
| Indoor Unit Size(s) | 24 |
| Installation Location | Indoor |
| Performance | |
| Cooling BTU | 24000 |
| Cooling Capacity | 24000 BTU |
| Moisture Removal | 9.6 Pints/Hour |
| Maximum Air Flow | 745 CFM |
| Minimum Air Flow | 403 CFM |
| Minimum Sound Level | 34 dB |
| Maximum Sound Level | 53 dB |
| Dimensions | |
| Gas Connection Size | 5/8 Inch |
| Liquid Connection Size | 1/4 Inch |
| Condensate Drain Size | 11/16 Inch |
| Product Height | 11 5/8 Inches |
| Product Width | 39 Inches |
| Product Depth | 10 1/3 Inches |
| Product Weight | 26 Pounds |
| Certifications | |
| AHRI Certified | Yes |
| ETL Listed | Yes |
| ISO Certified | Yes |
