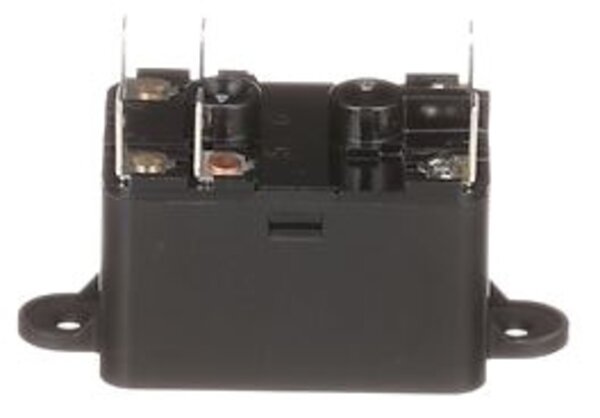

White-Rodgers 90-362 Fan Relay, 120v Coil, 50/60 Hz, SPNO Contacts: Ind: 12a@125v; 8a@250v Cont., Res: 18a@277v Cont.

White-Rodgers 90-362 Fan Relay, 120v Coil, 50/60 Hz, SPNO Contacts: Ind: 12a@125v; 8a@250v Cont., Res: 18a@277v Cont.

Availability:

In-Stock

Enclosed Relay
Type AC Operated, WR/RBM Type 184, Heavy Duty
Contact Configuration SPNO
Contact Voltage Rating 125/250/277 Volt AC
Contact Current Rating 12 Amp at 125 Volt AC (Inductive), 8 Amp at 250 Volt AC (Inductive), 18 Amp at 277 Volt AC (Resistive)
Coil Voltage 120 Volt AC at 50/60 Hertz
Terminal Type 1/4 Inch Quick Connect
Approval UL, CSA
Coil Current Rating 25 Milliamp
Coil Power Rating 3 Volt Amp
Inrush Power Rating 4 Volt Amp
Overall Dimension 1.265 Inch Width x 1.265 Inch Depth x 1.842 Inch Height
Temperature Rating -40 to 150 Deg F
Application Heating and Cooling, General Switching

$10.35 USD

Default Title

Buy Now

Add to wishlist

SKU:

90-362

ID:

WR100-2MP9-0030

Categories:

Controls / Electrical Controls / HVAC / Switching Relays / Thermostats & HVAC Controls

SPECIFICATIONS
