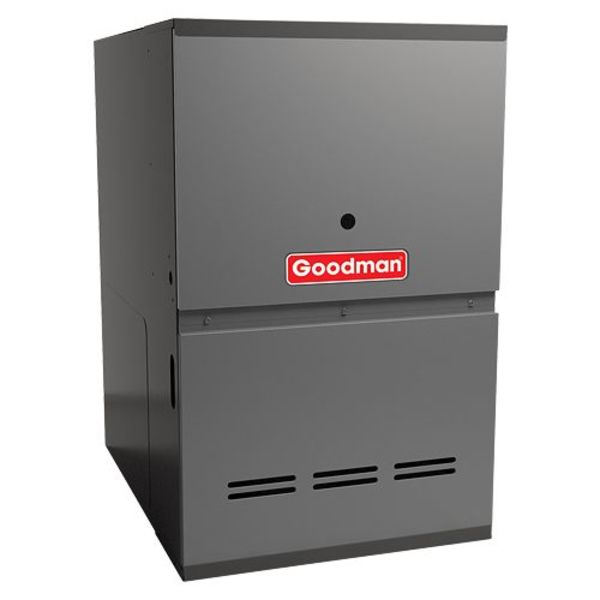

Goodman GCVC80; 80% AFUE; 80,000 BTU; Two Stage Variable Speed Gas Furnace

Availability:
Out-Stock
Variable Speed Downflow/Horizontal Blower with 1,200 Max CFM. Natural Gas with Low NOx Emissions. 17.5" Cabinet Width.
SKU:
GCVC80803BX
ID:
HE201-1002

PRODUCT INFO

Goodman's GCVC80 furnaces feature high-quality construction and efficient operation at a great value. The GCVC80 is equipped with an advanced variable-speed blower motor, which scales circulation to the specific demands of your application in real-time. The GCVC80 was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. If you're looking for consistent comfort and incredible efficiency from a two-stage furnace, it's tough to beat Goodman's GCVC80.

Advanced Heat Exchanger Design
The GCVC80 furnace employs a reliable heavy-duty tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

Variable Speed ECM Motor
The GCVC80 features an efficient and quiet variable speed motor that ramps up or down according to the heating or cooling demand, providing accurate temperature control and keeping money spent on utility bills in your pocket.

Quiet Comfort
The blower and gas valve of the GCVC80 were selected for their incredibly low sound levels. Additionally, this unit offers an airflow system and fan speed options that allow it to operate quietly while providing consistent comfort.

Secure Cabinet
All GCVC80 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.

ComfortBridge Technology
This furnace is equipped with Goodman's ComfortBridge technology that continuously monitors system performance for customized indoor comfort.

Extended Warranty
Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.

SPECIFICATIONS

General Information
TypeGas Furnace
Product LineGCVC80
Fuel Type Natural Gas
Vent Type
Chimney Vent
Modulating/Staging Two Stage
Blower MotorECM Variable-Speed
ConfigurationDownflow/Horizontal
Gas Conversion KitAvailable
Installation AvailableYes
UPC663051567290

Performance
AFUE 80 %
Heating BTU80000
High Fire Input80000 BTU
High Fire Output64000 BTU
Low Fire Input56000 BTU
Low Fire Output44800 BTU
Maximum Air Flow1200 CFM
Ultra Low NOx EmissionsNo

Dimensions
Flue Connection Size4 Inches
Cabinet Width17 1/2 Inches
Product Height33 1/2 Inches
Product Width17 1/2 Inches
Product Depth28 Inches
Product Weight109 Pounds
Shipping Weight109 Pounds

Certifications
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number202274190
