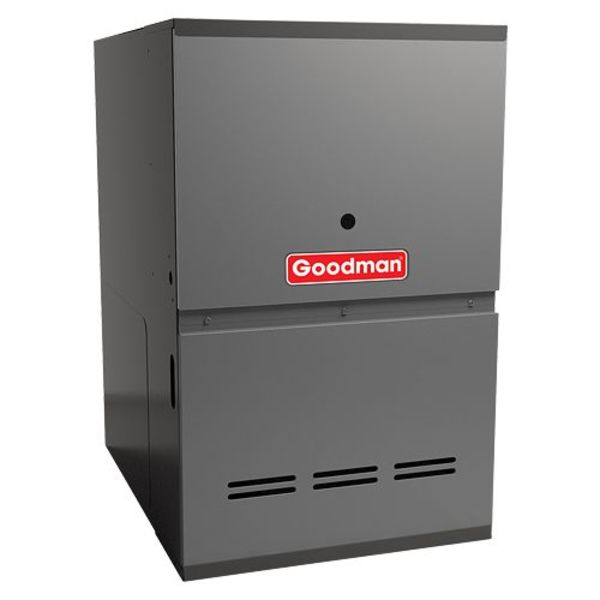

Goodman GCVC80; 80% AFUE; 80,000 BTU; Two Stage Variable Speed Gas Furnace
PRODUCT INFO
Goodman's GCVC80 furnaces feature high-quality construction and efficient operation at a great value. The GCVC80 is equipped with an advanced variable-speed blower motor, which scales circulation to the specific demands of your application in real-time. The GCVC80 was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. If you're looking for consistent comfort and incredible efficiency from a two-stage furnace, it's tough to beat Goodman's GCVC80.
Advanced Heat Exchanger Design
The GCVC80 furnace employs a reliable heavy-duty tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
Variable Speed ECM Motor|
The GCVC80 features an efficient and quiet variable speed motor that ramps up or down according to the heating or cooling demand, providing accurate temperature control and keeping money spent on utility bills in your pocket.
Quiet Comfort
The blower and gas valve of the GCVC80 were selected for their incredibly low sound levels. Additionally, this unit offers an airflow system and fan speed options that allow it to operate quietly while providing consistent comfort.
Secure Cabinet
All GCVC80 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.
ComfortBridge Technology
This furnace is equipped with Goodman's ComfortBridge technology that continuously monitors system performance for customized indoor comfort.
Extended Warranty
Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.
SPECIFICATIONS
General Information | |
Type | Gas Furnace |
Product Line | GCVC80 |
Fuel Type | Natural Gas |
Vent Type | Chimney Vent |
Modulating/Staging | Two Stage |
Blower Motor | ECM Variable-Speed |
Configuration | Downflow/Horizontal |
Gas Conversion Kit | Available |
Installation Available | Yes |
UPC | 663051567306 |
AFUE | 80 % |
Heating BTU | 80000 |
High Fire Input | 80000 BTU |
High Fire Output | 64000 BTU |
Low Fire Input | 56000 BTU |
Low Fire Output | 44800 BTU |
Maximum Air Flow | 2000 CFM |
Ultra Low NOx Emissions | No |
Low NOx Emissions | Yes |
Dimensions | |
Flue Connection Size | 4 Inches |
Cabinet Width | 21 Inches |
Product Height | 33 1/2 Inches |
Product Width | 21 Inches |
Product Depth | 28 Inches |
Product Weight | 125 Pounds |
Shipping Weight | 125 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
ISO Certified | Yes |
AHRI Reference Number | 202274191 |
