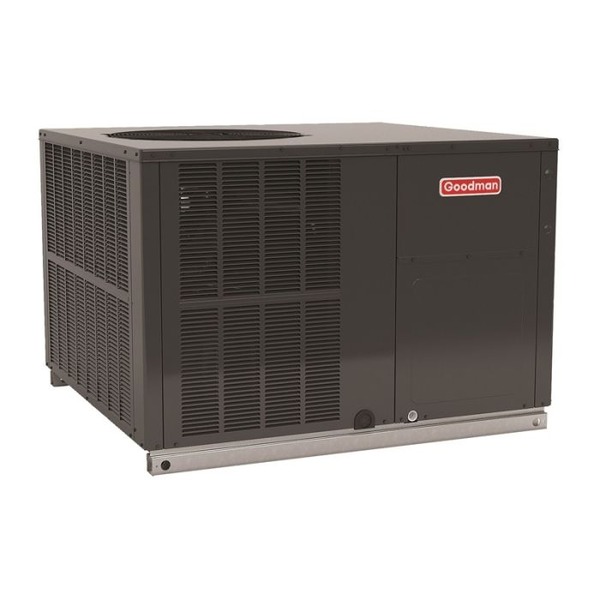

GPHM34241 3.5 Ton 13.4 SEER2 Multi-Position Goodman Packaged Heat Pump System
OVERVIEW
With its quiet horizontal or downflow discharge options and ready-to-install pre-charged refrigerant system, the Goodman GPHM34241 heat pump packaged unit is ready as an inexpensive heating and cooling solution for any all-in-one application. At a basic efficiency rating and a reliability to last a long time, the GPHM34241 lives up to the Goodman name as it offers superior comfort and affordability.
Utilizing advanced technology, the Goodman heat pump system efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
Can normally cover a medium-sized house in average climates
3.5 ton, 13.4 SEER2 heat pump packaged unit
Multi-positional discharge - downflow or horizontal
Fully charged
Low sound output
SKU:
GPHM34241
Categories:
PRODUCT INFO
Warranty
Goodman offers a 10 year parts warranty on the GPH1442M41 heat pump system when its installation follows state and local codes of the installation address and when the unit is registered online through the manufacturer.
Durability and Reliability
The GPH1442M41 is designed to be durable and sturdy, with its cabinet made of heavy-gauge galvanized-steel and its enhanced coil protection. For reliability, the fan motor is fully enclosed and permanently lubricated to allow for a long-lasting unit, as well as to prevent the need to re-lubricate the fan motor, lowering maintenance costs.
Installation and Maintenance
All Goodman packaged units come fully charged and tested as the factory standard, lowering heat pump installation costs since additional refrigerant is not required. On the GPHM34241 heat pump, the unit is designed to function in any packaged unit application, from your roof to the side of your house, in any application where an indoor furnace or air handler is not ideal. Moreover, the fully-insulated blower compartment has convenient access panels for easier maintenance.
Comfort in Mind
Goodman is always determined to provide the best comfort possible to its customers, all while staying at a convenient price and keeping the unit quiet, efficient, and dependable. The GPHM34241 lives up to Goodman's expectations.
SPECIFICATIONS
| General Information | |
| SKU | GPHM34241 |
| Weight (in lbs) | 410.000000 |
| AHRI Certificate Number | 210288032 |
| Airflow Direction | Downflow/Horizontal |
| Brand/Manufacturer | Goodman |
| Replaces | GPH1442M41 |
| HSPF | 8 |
| Cooling BTU | 41,000 BTU |
| Heating BTU | 40,600 BTU |
| Blower Motor | Multi Speed - ECM |
| Maximum CFM | 1300 |
| Decibel Level (dBA) | 80 decibels |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Configuration | Downflow/Horizontal |
| Unit Type | Heat Pump |
| Refrigerant | R410A |
| SEER2 (Efficiency) | 13.4 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size | 45 amps |
| Min. Breaker Size | 29.6 amps |
| Tonnage | 3.5 Ton |
| Height | 34.75" |
| Width | 47" |
| Depth | 51" |
| Warranty | 10 Years with Online Registration |
