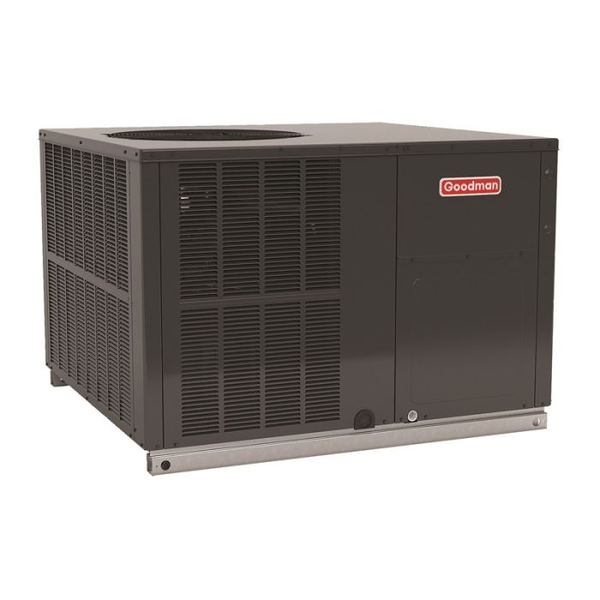

GPHM54241 3.5 Ton 15.2 SEER2 Multi-Position Goodman Packaged Heat Pump System
OVERVIEW
The Goodman GPHM54241 is an all-in-one outdoor heat pump packaged unit. With a durable cabinet and a high-efficiency design, the GPHM54241 offers superior comfort to your home at a SEER2 rating that will save you money in electrical bills over time.
Utilizing advanced technology, the Goodman heat pump system efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
Ideal size to cover a medium-sized house in ideal climates
3.5 ton, 15.2 SEER2 heat pump packaged unit
Downflow or horizontal discharge installation options
Fully charged
Low sound output
SKU:
GPHM54241
Categories:
PRODUCT INFO
3.5 Ton
With an output of 3.5 tons, the Goodman GPHM54241 is suitable for up to a medium-sized house in average climates. While this model is a heat pump, heat pumps only function down to 30°F, in which a backup heat kit required to heat lower. An electric heating kit can be purchased separately to provide straight electric heating to your home when field-installed.
15.2 SEER2
At 15.2 SEER2, the Goodman GPHM54241 heat pump packaged unit is higher than the industry standard efficiency. This 15.2 SEER2 unit is around 12% more efficient than its 13.4 SEER2 counterpart, saving you money over time in electric bills.
Warranty
Goodman heat pump system offers a 10 year parts warranty on the GPHM54241 when its installation follows state and local codes of the installation address and when the unit is registered online through the manufacturer.
Durability and Reliability
The GPHM54241 is designed to be durable and sturdy, with its cabinet made of heavy-gauge galvanized-steel and its enhanced coil protection. For reliability, the fan motor is fully enclosed and permanently lubricated to allow for a long-lasting unit.
Installation and Maintenance
All Goodman packaged units come fully charged and tested as the factory standard, lowering heat pump installation costs since additional refrigerant is not required. On the GPHM54241, the discharge can also be horizontal next to your home or downflow on top of your home, in any installation where an indoor furnace or air handler will not work, making it much more versatile in installation applications than its purely horizontal counterparts. Moreover, the fully-insulated blower compartment has convenient access panels for easier maintenance.
Comfort in Mind
Goodman is always determined to provide the best comfort around, all while staying at a convenient price and keeping the unit quiet, efficient, and dependable. The GPHM54241 lives up to Goodman's expectations, as the insulation on its cabinet lowers the unit's overall sound output without sacrificing efficiency or cost.
SPECIFICATIONS
| General Information | |
| SKU | GPHM54241 |
| Weight (in lbs) | 410.000000 |
| AHRI Certificate Number | 210288050 |
| Brand/Manufacturer | Goodman |
| Replaces | GPH1642M41 |
| Product Features | Two Stage Condenser |
| HSPF | 8 |
| Cooling BTU | 41,000 BTU |
| Heating BTU | 40,600 BTU |
| Maximum CFM | 1300 |
| Decibel Level (dBA) | 78 decibels |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Configuration | Multi-Position |
| Unit Type | Heat Pump |
| Refrigerant | R410A |
| SEER2 (Efficiency) | 15.2 |
| Condenser Stages | Two Stage |
| Compressor Type | Scroll |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size | 45 amps |
| Min. Breaker Size | 29.6 |
| Tonnage | 3.5 Ton |
| Height | 42 3/4" |
| Width | 47'' |
| Depth | 51'' |
| Warranty | 10 Years with Online Registration |
