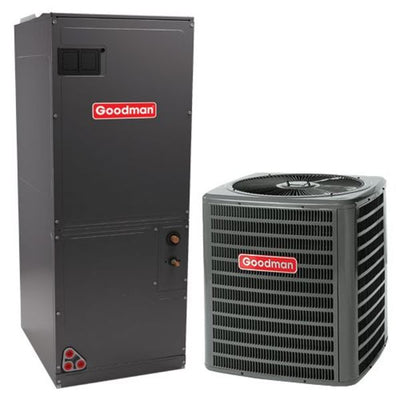

Goodman 4 Ton 14.5 SEER Air Conditioner Variable Speed Split System (Cooling only)
Product Includes 2 items:
(1) Goodman 4 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140481);
(1) Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet (AVPTC61D14)
PRODUCT INFO
The Goodman GSX140481 Air Conditioner Condenser
Energy-Efficient Scroll Compressor - Inside of the Goodman GSX140481 air conditioners you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX140481 air conditioners simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
Quiet Operation - An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.
AVPTC61D14 Air Conditioner Air Handler
The Goodman AVPTC61D14 Air Conditioner Air Handler design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. These Goodman AVPTC61D14 Air Conditioner air handler is ideal for either new or retrofit installations.
All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.
SPECIFICATIONS
General Information | |
Operating Mode | Cooling |
Configuration | Multi-Position |
Compressor Stages | Single |
DOE Regional Compliance | North and Southeast |
Installation Available | Yes |
Performance | |
Capacity | 4.0 Tons |
Cooling Capacity | 46500 BTU |
Nominal Cooling Capacity | 48000 BTU |
SEER | 14.5 |
EER | 12.2 |
Maximum Air Flow | 1455 CFM |
Dimensions | |
Product Weight | 387 Pounds |
Shipping Weight (total) | 409 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
AHRI Reference Number | 8996150 |
Country of Origin | United States |
