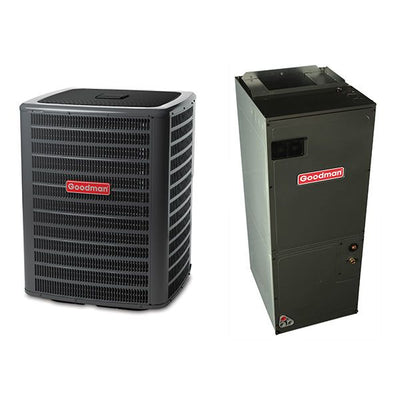

Goodman 4 Ton 14 SEER Air Conditioner Split System (Cooling only)
Product Includes 2 items:
(1) Goodman 4 Ton 14 SEER Air Conditioner Condenser with R410A Refrigerant (GSX140481);
(1) Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet (ARUF61D14)
PRODUCT INFO
Energy-Efficient Scroll Compressor - Inside of the Goodman GSX140481 air conditioners you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.
Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX140481 air conditioners simply work the way they're supposed to, making each one a thing of beauty.
Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.
Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.
Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
Quiet Operation - An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.
The Goodman ARUF61D14 Air Conditioner Air Handler features a check flowrater expansion device. The Goodman ARUF61D14 Air Conditioner Air Handler is housed in a rust-resistant, fully insulated steel cabinet with painted front panels. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Known as the best modular blower around, the Goodman ARUF ARUF61D14 Multi speed, Multi position Air Handler Electric Furnace with PSC Motor is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman ARUF ARUF61D14 Multi speed, Multi position Air Handler Electric Furnace with PSC Motor is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.
SPECIFICATIONS
General Information | |
Operating Mode | Cooling |
Configuration | Multi-Position |
Compressor Stages | Single |
DOE Regional Compliance | Nationwide |
Performance | |
Capacity | 4.0 Tons |
Cooling Capacity | 45500 BTU |
Nominal Cooling Capacity | 48000 BTU |
SEER | 14.0 |
EER | 11.7 |
Maximum Air Flow | 1520 CFM |
Dimensions | |
Product Weight | 375 Pounds |
Shipping Weight (total) | 397 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
AHRI Reference Number | 7984200 |
Country of Origin | United States |
MANUALS
- Goodman_GSX14_Service_Manual
- Goodman_ARUF_Installation_Manual
- Goodman_GSX14_Spec_Sheet1
- Goodman_ARUF_Spec_Sheet
- Goodman_GSX14_Brochure
- Goodman_Air_Handlers_Brochure
- Goodman_GSX14_Spec_Sheet
- Goodman_GSX14_Warranty
- Goodman_GSX14_Installation_Manual
- Goodman_Air_Handlers_Warranty
- Goodman_Piston_Kit_Chart
