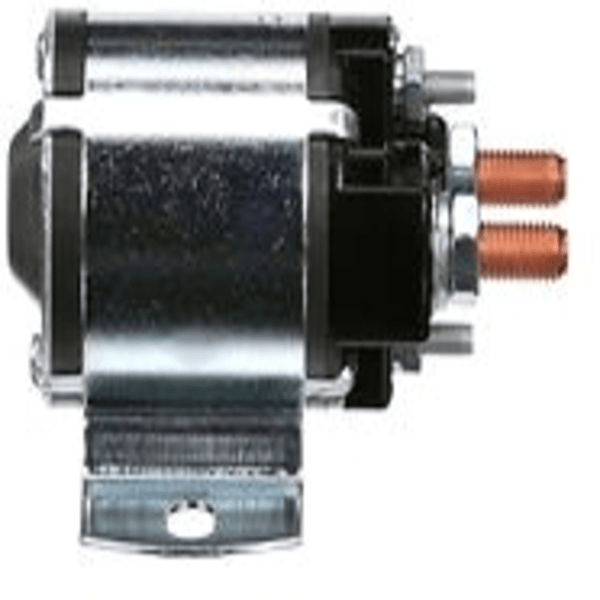

W-R124-317111 Solenoid SPDT 36 VDC Isolated Coil Continuous Duty Normally Open Continuous Contact Rating 100 Amps Inrush 400 Amps Normally Closed Continuous Contact Rating 50 Amps Inrush 100 Amps Side View

White-Rodgers 124-317111 Solenoid, SPDT, 36 VDC Isolated Coil, Continuous Duty, Normally Open Continuous Contact Rating 100 Amps, Inrush 400 Amps, Normally Closed Continuous Contact Rating 50 Amps, Inrush 100 Amps

Availability:

In-Stock

Power Contactor
Type SPDT, Isolated Coil
Voltage Rating 36 Volt DC
Mounting Vertical Plane
Size 5/16 Inch-24 UNF-2A Threaded (Contact), #10-3 UNF-2A Threaded (Coil)
Duty Cycle Type Continuous
Terminal Type 6
Bracket Style Standard
Coil Resistance 120 Ohm
Contact Material Silver Alloy
Dielectric Strength 600 Volt
Torque Rating 60 Inch-Pound (Contact Terminal), 12 to 18 Inch-Pound (Coil Terminal)
Temperature Rating -40 to 149 Deg F

$85.10 USD

Default Title

Buy Now

Add to wishlist

SKU:

124-317111

ID:

WR100-2MP9-0084

Categories:

Contactors / HVAC / HVAC Repair Parts & Replacement Components

SPECIFICATIONS
