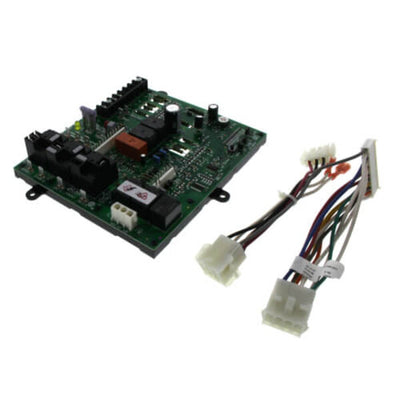

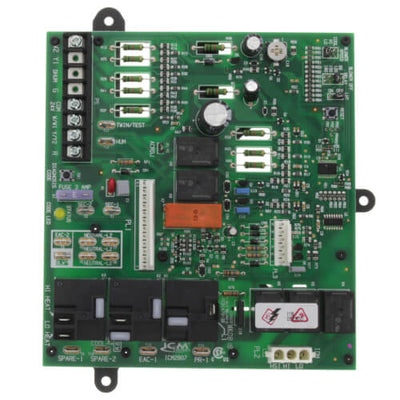

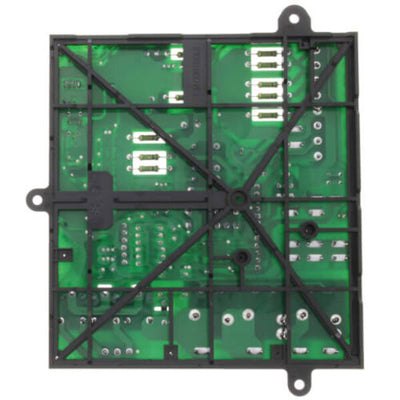

ICM ICM2807 Furnace Control Board
- PH501-3013 replaces the following brands and item numbers: Carrier: HK42FZ017
$383.58 USD
SKU:
ICM2807
ID:
PH501-1S9-3013
Categories:
PRODUCT INFO
The ICM2807 is a low cost fit, form and functional replacement for the Carrier HK42FZ017 furnace control board.
Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
- Microprocessor-based precision
- Designed for 100% gas shutoff in case of ignition failure
- Twinning compatible with another ICM2807 control
- Reverse polarity protection
- Secondary brownout voltage protection
- Compatible with 24 VAC standard thermostat
- Continuous Blower Speed Jumper
- Limit Switch Lockout Time
- Limit Switch Lockout After Power Interruption
- Self-Diagnostics
- Provides diagnostic
SPECIFICATIONS
| General Information | |
| Product Type | Control Board |
| Voltage Range | Line (98 to 132 VAC) @ 60Hz |
| Ignitor | 5A @ 120 VAC |
| Cool Blower | 10 HP, 120 VAC |
| Low Heat | 5A, 1/2 HP, 120 VAC |
| High Heat | 10A, 1 HP, 120 VAC |
| Inducer Motor | 4A, FLA-8.0 LRA @ 120 VAC |
| Gas Valve | 1.5A @ 30 VAC |
| EAC | 1A@120 VAC |
| Humidifier | 0.5A & 24 VAC |
| Weight/Dimensions | |
| Weight | 1.0 |
| Height | 1.5 |
| Width | 6.5 |
| Length | 7 |
