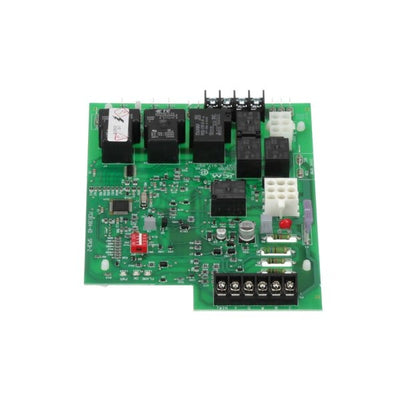

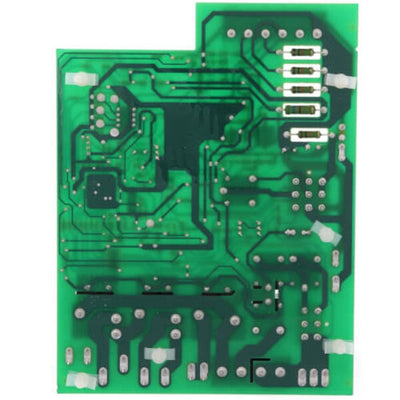

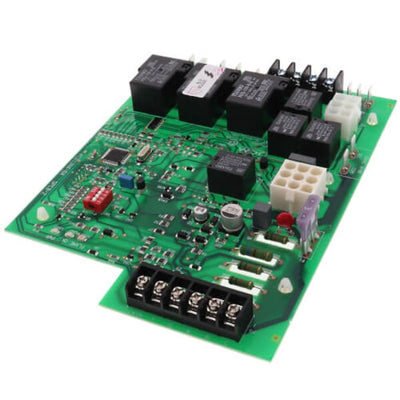

ICM ICM288 Furnace Ignition Control Board
- PH501-3003 replaces the following brands and item numbers: Rheem: 62-24084-82.
$205.85 USD
SKU:
ICM288
ID:
PH501-1S9-3003
Categories:
PRODUCT INFO
- Microprocessor-based design
- Monitors pressure, roll-out and limit switches
- Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
- Reverse polarity detection
- Twinning compatible with other ICM288 control boards
- Diagnostic LEDs for testing/troubleshooting
SPECIFICATIONS
| General Information | |
| Product Type | Furnace Control |
| Voltage | Line 98 to 132 VAC @ 60Hz |
| Ignitor | 5A@120 VAC |
| Cool Blower | 10A 2 HP, 240 VAC |
| Heat | 5A 1/2 HP, 250 VAC |
| Inducer Motor | 4A, 120 VAC |
| Humidifier Motor | 0.5A, 24 VAC |
| Electronic Air Cleaner | 1A, 120 VAC |
| Weight/Dimensions | |
| Weight | 0.55 |
| Height | 1.5 |
| Width | 5.75 |
| Length | 7.5 |
