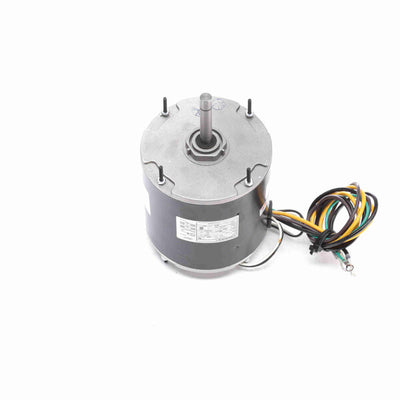

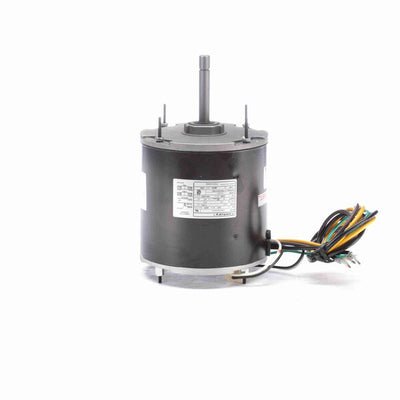

Century OEM Replacement Motor, 1050 RPM, 1/2 HP, 460 V, 48 Frame,Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads with Quick Connect Terminals
- Extended Studs Shaft End and Lead End, Belly Band Mount
- HM102-0009 replaces the following brands and item numbers: D802, 3320
$409.50 USD
PRODUCT INFO
Applications
Replaces motors in units by Carrier/Bryant and others
Features
70°C ambient Three year warranty UL and CSA approved Class F insulation achieves superior dielectric strength for long thermal life Single-speed Sleeve or ball bearing Large high-temperature nylon glass-filled shaft slinger for bearing protection; keeps water and dirt out of motor bearings 36” color coded high temperature leads for easy identification and installation Easy to remove drain plugs in both end frames allow accumulated condensation to be expelled quickly
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674020987 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | .90 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 5.00 in |
| Shaft Extension | 3.3 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 9.24 in |
| Shaft Diameter | 0.500 in |
