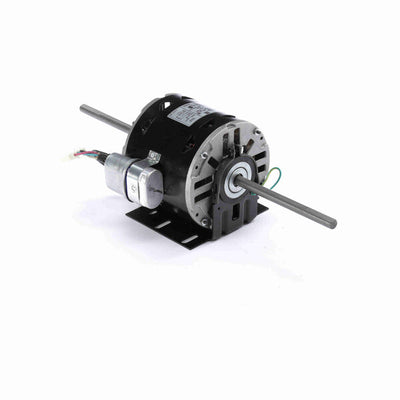

Century OEM Replacement Motor, 850 RPM, 1/8 HP, 115 V, 48 Frame, Semi Enclosed
- OEM Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermal Protection: Automatic
- Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 12" Leads with Terminal House
- Resilient Base
$875.70 USD
PRODUCT INFO
Applications
Direct replacement motors for ITT Nesbitt HVAC wall and ceiling units found in schools, hotels, hospitals, auditoriums and gymnasiums
Features
Manufactured to the same standards as the original designs|40°C ambient, PSC, class A insulated |Resilient base included, 1.0 Service Factor|Double shaft motors have the same shaft lengths on both ends
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674015006 |
| Output HP | 1/8 Hp |
| Frequency | 60 Hz |
| Current | 1.5 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 850 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 10 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 4.50 in |
| Shaft Extension | 6.49 in |
| Rotation | Clockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 18.00 in |
| Shaft Diameter | 0.500 in |
