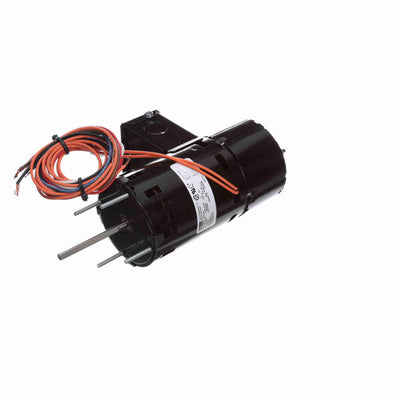

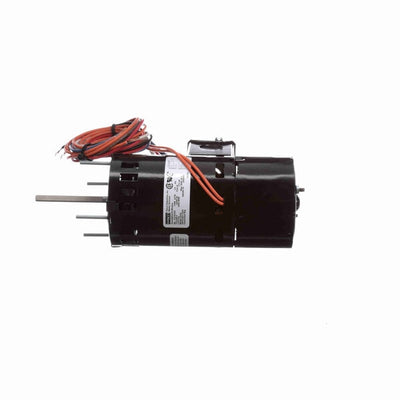

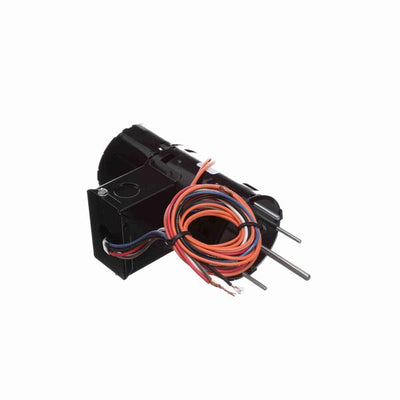

Fasco OEM Replacement Motor, 3000 RPM, 1/15 HP, 115/230 V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- Shaded Pole
- Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- Conduit Box, 32" Power Leads, 32" Switch Leads
- Extended Studs Shaft End
- HM102-0060 replaces the following brands and item numbers: Carrier CWSE motor #HC24AU600 and 701; shaded pole
$281.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508020013 |
| Output HP | 1/15 Hp |
| Frequency | 60 Hz |
| Current | 2.0/1.0 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3" Diameter |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115/230 V |
| Speed | 3000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 2 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 4.24 in |
| Shaft Extension | 2.5 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 9.42 in |
| Shaft Diameter | 0.250 in |
