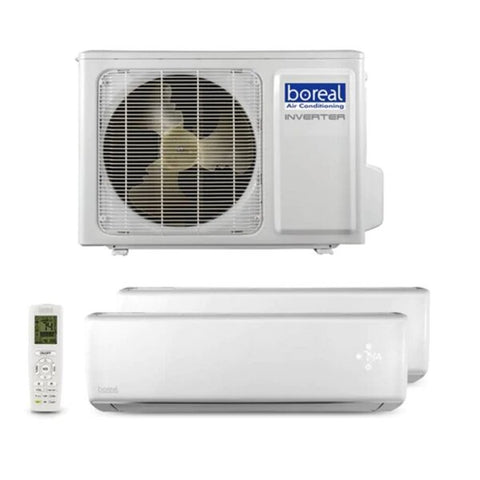

Boreal BRISA 30,000 BTU 2.5 Tons Dual Zone Wall Mount Ductless Mini Split System (12k, 18k) 230V
Rated Capacity: 30,000 BTU Cooling
Product Includes

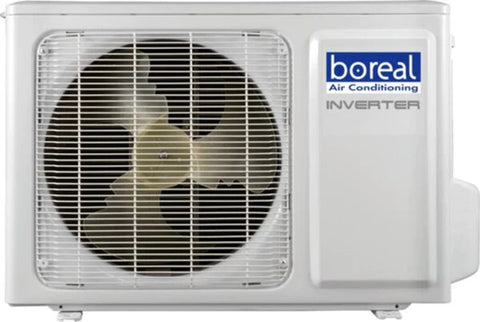

(1) Boreal BRISA - 30,000 BTU - Outdoor Condenser - Single Zone Only (MBRS30HPJ1OA)

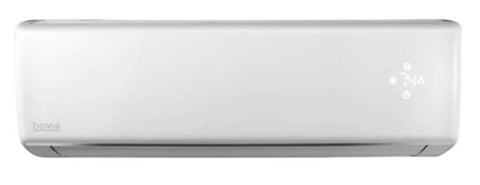

(1) Boreal BRISA 12,000 BTU Wall Mounted Unit - For Single Zone (BRS12HPJ1IA )
(1) Boreal BRISA 18,000 BTU Wall Mounted Unit - For Single Zone (BRS18HPJ1IA )

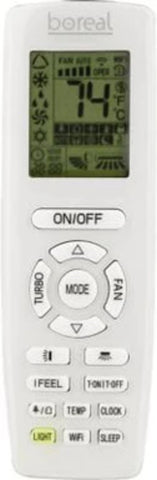

Wireless Remote Control
Required, but not included: 1/4" x 3/8" (1) and 1/4" x 1/2" (1) Line Sets
$2,759.00 USD
SKU:
BRS30-W205
ID:
BRS100-0027
PRODUCT INFO
- SEER: 21
- Power Supply: 208-230V / 1Ph / 60Hz
- Refrigerant Charge: R-410a
- Limited Warranty: 3/5 Years on parts/compressor
SPECIFICATIONS
| Capacity | 30,000 BTU | |
| Cooling Capacity | 8189 - 33438 | |
| Cycle Hertz | 60 Hz | |
| Filter Type | Catechin | |
| HSPF | 11 | |
| Inverter | Yes | |
| Item Weight | 205.0000 pounds | |
| Line Set Size For Bundle | 1/4" x 3/8" (1) and 1/4" x 1/2" (1) | |
| Minimum Circuit Amps | 20 | |
| Phase | Single | |
| Refrigerant | R-410A | |
| Room Size | 1,000 - 1,650 ft2 | |
| UPC | N/A | |
| Zone Capability | 2 Zones | |
| Equipment Type | Heat Pump | |
| SEER | 21 | |
| EER | 12.5 | |
| Voltage | 208-230 VAC | |
| Energy Star Rated | Yes | |
| Heating Capacity | 8189 - 32414 | |
| Tonnage | 2.5 | |
| Product Family | Brisa | |
| Mounting Type | Wall |
