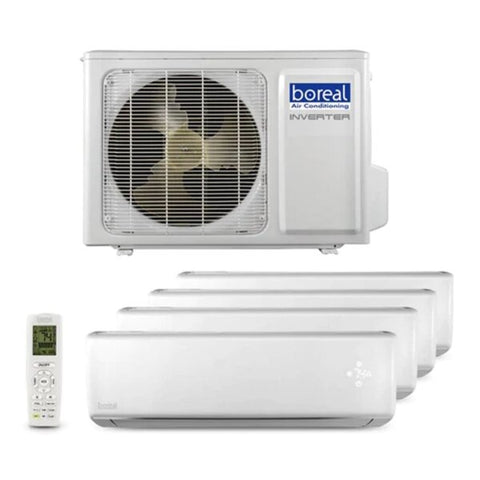

Boreal BRISA 42,000 BTU 3.5 Tons Quad Zone Wall Mount Ductless Mini Split System (9k, 9k, 12k, 12k) 230V
Rated Capacity: 42,000 BTU Cooling
Product Includes

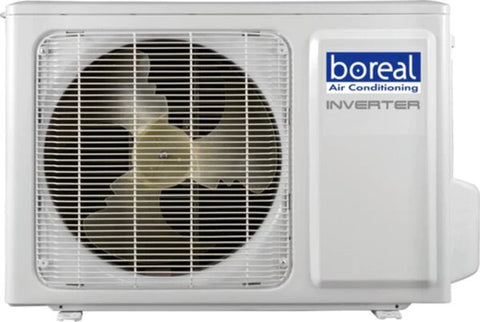

(1) Boreal BRISA - 42,000 BTU - Outdoor Condenser - Single Zone Only (MBRS42HPJ1OA)

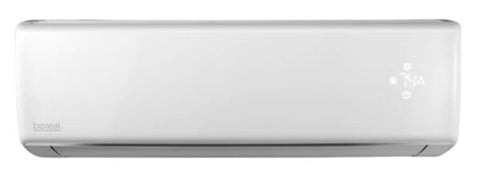

(2) Boreal BRISA 9,000 BTU Wall Mounted Unit - For Single Zone (BRS09HPJ1IA )
(2) Boreal BRISA 12,000 BTU Wall Mounted Unit - For Single Zone (BRS12HPJ1IA)

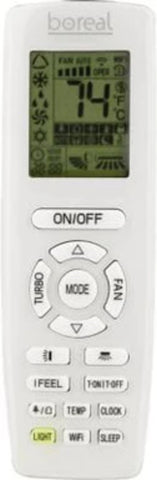

Wireless Remote Control
Required, but not included: 1/4" x 3/8" (4) Line Sets
$3,932.00 USD
SKU:
BRS42-W403
ID:
BRS100-0047
PRODUCT INFO
- SEER: 21
- Power Supply: 208-230V / 1Ph / 60Hz
- Refrigerant Charge: R-410a
- Limited Warranty: 3/5 Years on parts/compressor
SPECIFICATIONS
| Capacity | 42,000 BTU | |
| Cooling Capacity | 8871 - 40944 | |
| Cycle Hertz | 60 Hz | |
| Filter Type | Catechin | |
| HSPF | 10.2 | |
| Inverter | Yes | |
| Item Weight | 276.0000 pounds | |
| Line Set Size For Bundle | 1/4" x 3/8" (4) | |
| Minimum Circuit Amps | 24 | |
| Phase | Single | |
| Refrigerant | R-410A | |
| Room Size | 1,400 - 2,300 ft2 | |
| UPC | N/A | |
| Zone Capability | 4 Zones | |
| Equipment Type | Heat Pump | |
| EER | 10.4 | |
| Voltage | 208-230 VAC | |
| Energy Star Rated | Yes | |
| Heating Capacity | 8871 - 46062 | |
| Tonnage | 3.5 | |
| Product Family | Brisa | |
| Mounting Type | Wall |
