Daikin 36,000 BTU 17.7 SEER 2-Zone Heat Pump System; 12k + 15k Indoor Goodman 3 to 3.5 Ton Evaporator Coil; Upflow/Downflow; Uncased A Coil; 23" Width

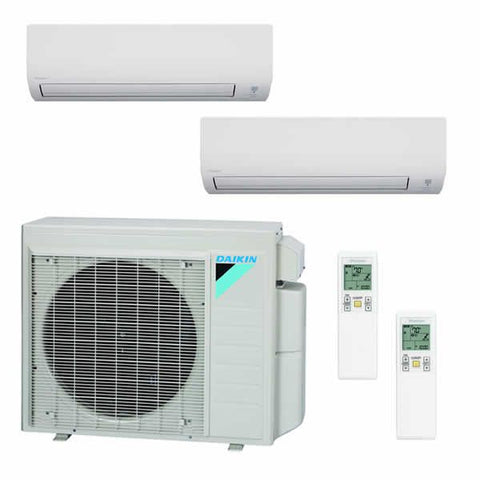

Product Includes 3 items:

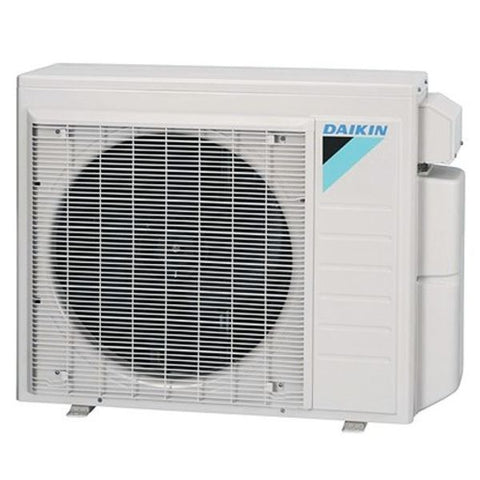

(1) Daikin 36,000 BTU 17.7 SEER Ductless Multi Zone Heat Pump Condenser (4MXS36RMVJU);

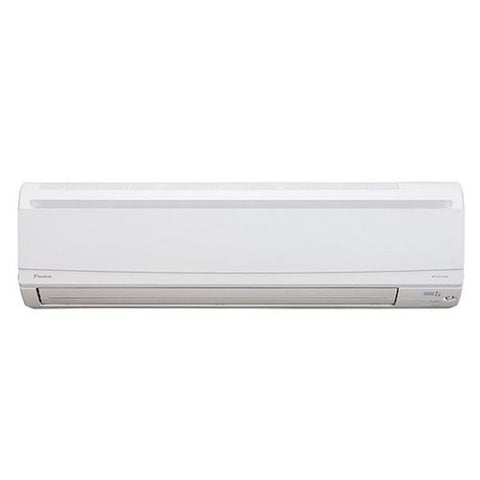

(1) Daikin 15,000 BTU Ductless Wall Mounted Air Handler (FTXS15LVJU);
(1) Daikin 12,000 BTU Ductless Wall Mounted Air Handler (FTXS12LVJU);
SKU:
4MXS36RMVJU; FTXS12LVJU; FTXS15LVJU
ID:
HE103-3008; HE103-2002; HE103-2003
PRODUCT INFO
This product requires the following accessories for installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
SPECIFICATIONS
| General Information | |
| Type | Wall Mounted |
| Product Line | MXS Multi Zone |
| Operating Mode | Heating and Cooling |
| Number of Zones | 2 |
| Refrigerant Type | R-410A |
| Indoor Unit Size(s) | 12 + 15 |

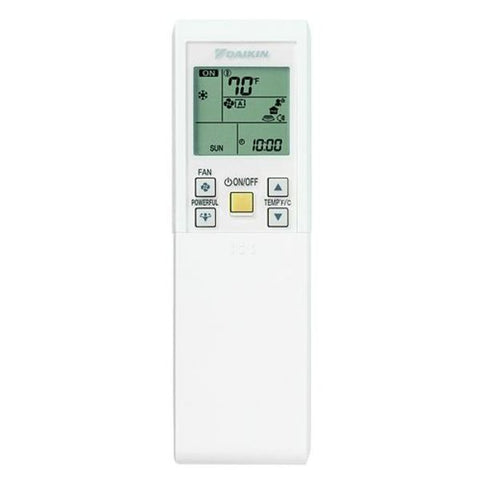

| Remote Control | Wireless |
| DOE Regional Compliance | Nationwide |
| System Code | 1215000000 |
| Performance | |
| SEER | 17.7 |
| EER | 9.2 |
| HSPF | 12.2 |
| Cooling Power Input | 116 Watts |
| Heating Power Input | 85 Watts |
| Low Ambient Heating | No |
| Minimum Outdoor Temperature for Heating | 5 F |
| Minimum Outdoor Temperature for Cooling | 14 F |
| Dimensions | |
| Product Weight | 205 Pounds |
| Shipping Weight | 224 Pounds |
| Certifications | |
| Energy Star Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| ISO Certified | Yes |
| AHRI Reference Number | 201851579 |
