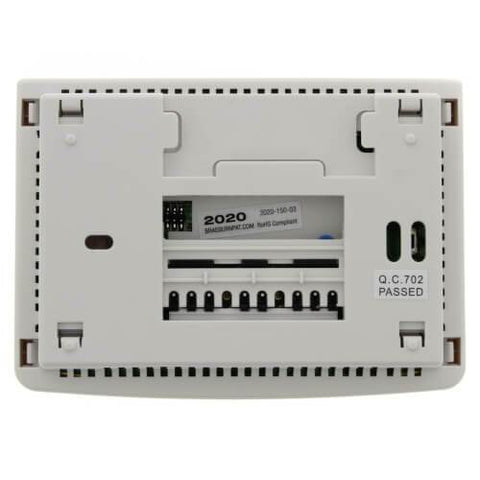

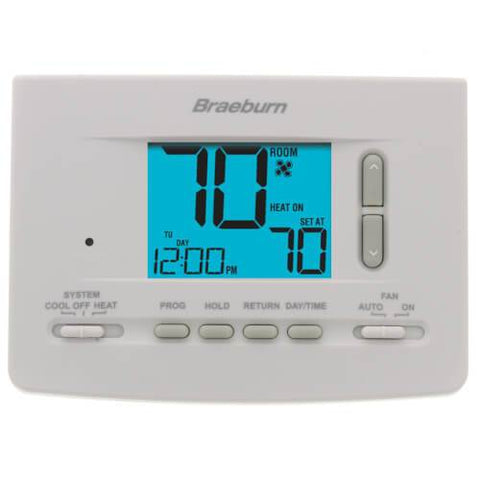

Braeburn Builder Model 2020 Programmable Thermostat (1 Heat/1 Cool)

Availability:
In-Stock
  • Programming: 7 Day, 5-2 Day, or Non-Programmable
  • Warranty: 5 Year

$47.38 USD

Title
Buy Now

PRODUCT INFO

Features

  • 7 Day, 5-2 Day or Non-Programmable
  • Large 3 Sq. Inch Display w/ Bright Blue Backlight
  • Adjustable Temperature Limits
  • Hardwire or Battery Powered
  • Permanent Memory Retains Settings
  • Filter Check Monitor
  • Adjustable Temperature Differential
  • Adaptive Recovery Mode (ARM )
  • Meets Energy Aware Guidelines
  • ESD Guard Electronic Circuitry
  • Compressor Short Cycle Protection
  • Temporary Program Override
  • Programmable Extended Hold Mode
  • Front Access Reset Button
  • Fahrenheit - Celsius Switch
  • English / Spanish Packaging and Instruction Card w/ FREE Contractor Branding
  • 5 Year Warranty

Braeburn 2020 Replaces*

  • Honeywell* TH4110, TH6110
  • Emerson* 1F80-361, 1F80-0224, 1F80-0261

*Verify specific application requirements. All trademarks are the property of their respective owners.

SPECIFICATIONS




Dimensions:3.70” x 5.16” x 1.38”

Electric Rating:24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 3 amp total maximum load (all terminals)

AC Power:18-30 Volt AC

DC Power:3.0 Volts DC (2 “AA” Alkaline batteries included)

Compatibility:Single stage gas, oil or electric systems Single stage heat pump systems Millivolt heating systems

Control Range: 45° to 90° F (7° to 32° C)

Display Range:40° to 99° F (5° to 37° C)

Accuracy:+/- 1° F (+/- .5° C)

Temperature Differential:5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)

Storage Temperature:14° to 140° F (-10° to 60° C)

Operating Humidity:5% to 95% Relative Humidity

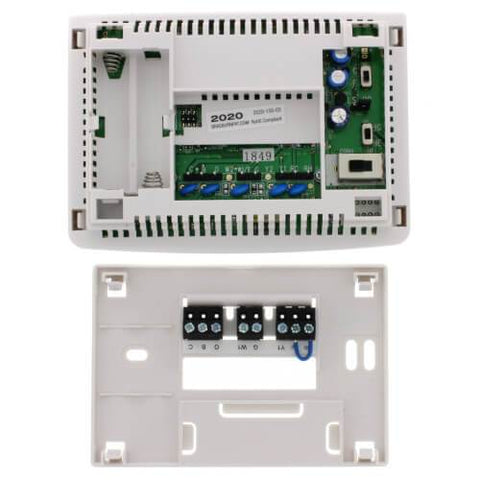

Terminations:Rh, Rc, Y1, G, W1, O, B, C
